13inch LED Digital Board with 7 Segments Components For Clock to
Build
PARAMETER
| Dight Model NO. | D330B |
| Digit Height | 13'' 330mm Height |
| Digit Board Size | 152mm W * 350mm H * 7mm T |
| Led Quantity | 188PCS |
| Led Line | 3 |
| Digit Color | Single Blue |
| Digit Circuit Board | FR-4 T130 PCB Board |
| PCB Board Thickness | 1.6mm |
| Diode Type | Mist Led Diodes and Without Dazzling |
| Diode Chip | Cree / Epistar / AXT |
| Led Diode Diameter | φ5mm |
| Brightness | 1000 ~ 1500 / Per Led |
| Max Viewing Angle | 135° |
| Minimum Viewing Angle | 45° |
| Communication Connector | 10Pin Flat Grey Cable |
| LED Wave Length | 620nm ~ 625nm |
| Led Forward Voltage | 2.0V - 2.4V |
| Led Peak Forward Current | 100mA |
| Operating Voltage | DC5V |
| Operating Current | Max 0.8A |
| Power Consumption | Max 4W |
| Luninous Intenisty | 4500cd/m2 |
| Led Operating Temperature (℃) | -20 ~ 65 |
| Led Storage Temperature (℃) | -40 ~ 100 |
| Led Operating Humidity | 5% ~ 95% |
| Digit Weight | 200g |
| Led Life | 100000 Hours |
| Installation | 6 Screws |
ADVANTAGE
1. HORN SOCKET : The Simple Horn Socket Can Lock the Signal Cable
Head to Prevent it from Falling off During Shock.
2. LARGE VALUE CAPACITOR : It is Avaliable for Rectification
Filtering.

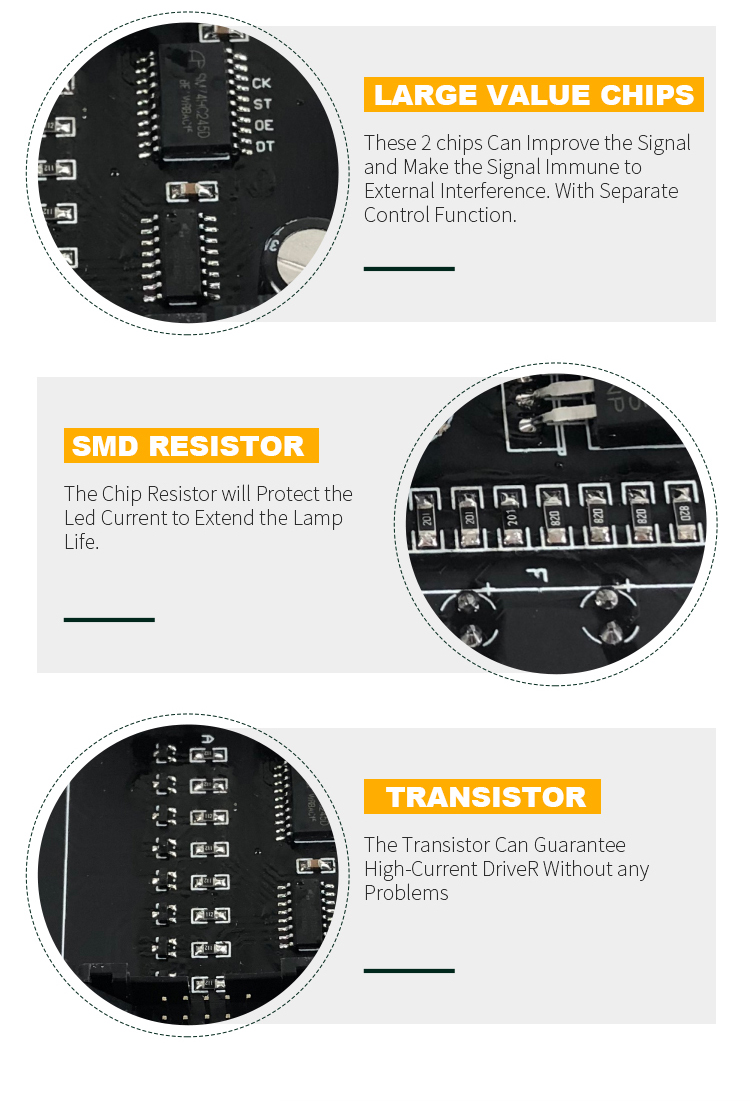

3. LARGE VALUE CHIPS : Improve the Signal and Make the Signal Immune to External
Interference. With Separate Control Function.
4. SMD RESISTOR: The Chip Resistor will Protect the Led Current to
Extend the Lamp Life.
5. TRANSISTOR: The Transistor Can Guarantee High-Current DriveR
Without any Problems.
PACKAGE & DELIVERY
Packaging Details :
- Air and Express Shipment Packaging : Film+1-3 cm Foam + Paper
cardboard
- Sea Shipment Packaging : Wood Case
- OEM Packaging : Customized . Warmly welcome to contact us to talk
more detail.
Delivery Details :
- Order Quantity < 500 : 7days ~ 8days.
- Order Quantity < 1000 : 10days ~ 15days.
- Order Quantity > 1000 : 15days ~ 20days.
- Sea Shipment need 25days to arrive.
- Air and Express Shipment need 3-5days to arrive.
