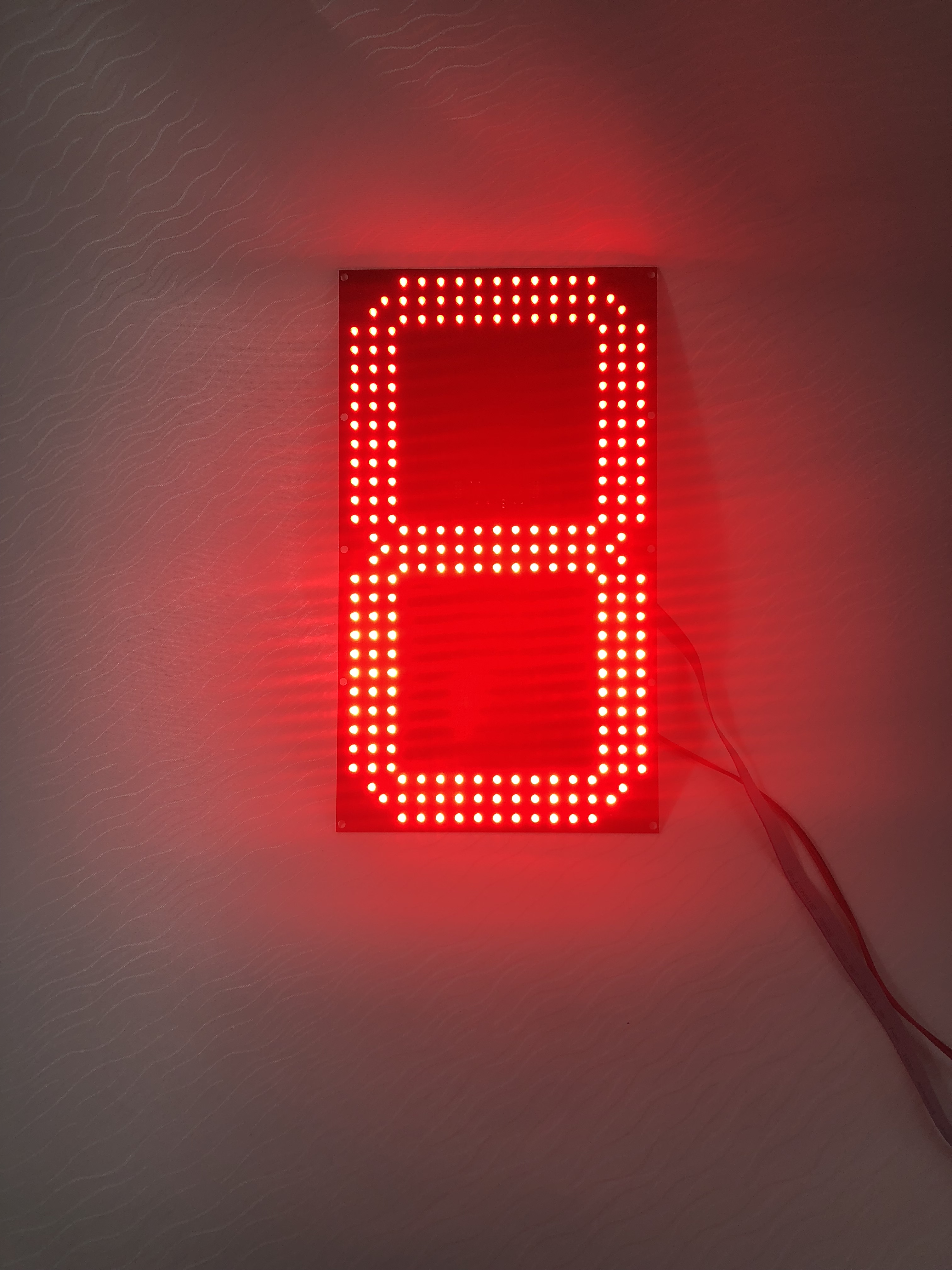

22cm x 38cm 15inch Led Digit with 35*7 Segments Dideos
PARAMETER
| Dight Model NO. | D381R |
| Digit Height | 15'' 381mm Height |
| Digit Board Size | 220mm W * 381mm H * 7mm T |
| Led Quantity | 245PCS |
| Led Line | 3 |
| Digit Color | Single Red |
| Digit Circuit Board | FR-4 T130 PCB Board |
| PCB Board Thickness | 1.6mm |
| Diode Type | Mist Led Diodes and Without Dazzling |
| Diode Chip | Cree / Epistar / AXT |
| Led Diode Diameter | φ5mm |
| Brightness | 1000 ~ 1500 / Per Led |
| Max Viewing Angle | 135° |
| Minimum Viewing Angle | 45° |
| Communication Connector | 10Pin Flat Grey Cable |
| LED Wave Length | 620nm ~ 625nm |
| Led Forward Voltage | 2.0V - 2.4V |
| Led Peak Forward Current | 100mA |
| Operating Voltage | DC12V |
| Operating Current | Max 0.98A |
| Power Consumption | Max 12W |
| Luninous Intenisty | 6500cd/m2 |
| Led Operating Temperature (℃) | -20 ~ 65 |
| Led Storage Temperature (℃) | -40 ~ 100 |
| Led Operating Humidity | 5% ~ 95% |
| Digit Weight | 200g |
| Led Life | 100000 Hours |
| Installation | 6 Screws |
ADVANTAGE
1. HORN SOCKET : The Simple Horn Socket Can Lock the Signal Cable
Head to Prevent it from Falling off During Shock.
2. LARGE VALUE CAPACITOR : It is Avaliable for Rectification
Filtering.
3. LARGE VALUE CHIPS : Improve the Signal and Make the Signal
Immune to External Interference. With Separate Control Function.
4. SMD RESISTOR: The Chip Resistor will Protect the Led Current to
Extend the Lamp Life.
5. TRANSISTOR: The Transistor Can Guarantee High-Current DriveR
Without any Problems.
APPLICATION
1. ELECTRONIC SCOREBOARD :
1) Multi - Sport Scoreboard
2) Football / Rugby Scoreboard
3) Basketball Scoreboard
4) Baseball Scoreboard
5) Cricket Scoreboard
6) Tennis Scoreboard
7) Hockey Scoreboard
8) Swimming Scoreboard
9) Volleyball Scoreboard
10) Different Kind of Scoreboard ......
2. GAS STATION PRICE SIGN:
1) 8.888
2) 88.88
3) 888.88
4) Different Formation of Price Sign.......
3. OUTDOOR / INDOOR LARGE TIMER AND CLOCK
1) Countdown Timer / Clock
2) Count up Timer / Clock
3) Day Time Clock
4) 00 : 00 / 00 : 00 : 00 / 00.000 Different Kind of Clock ...
