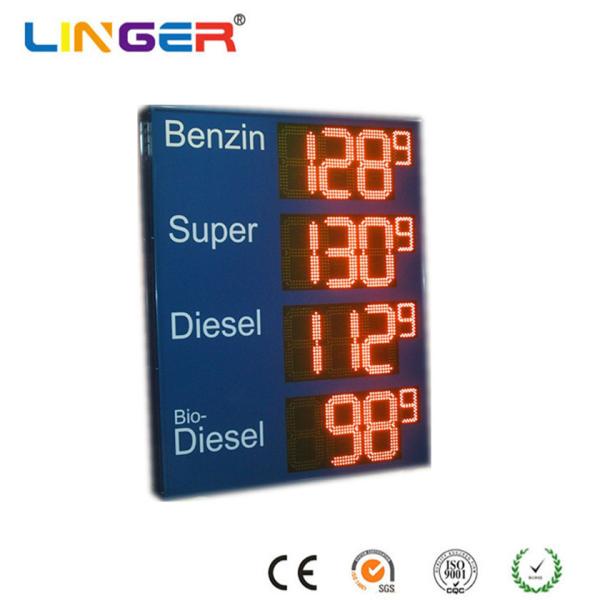

8.88 with small 9 Led Gas Price Sign Aluminium Frame / Iron Cabinet
| Digits Color | Red |
| Digit Height | 12inch 300mm (Standard) |
| Digit Type | Completely PCB Circuit Board with DIP Led Diodes |
| Led Diodes Qty /Per Digit | 182pcs |
| Sign With Cabinet Dimension | Customized |
| Net Weight for one piece | 28kgs / piece |
| Control Communication | IR / Wireless /RS232 Communication |
| Control Type | IR Remote/Wireless Control Box / PC Software |
| Control Operation Distance | 1m ~8m (IR) / 1m ~300m (Wireless) |
| Brightness | >7500cd/m2 / Auto-dimming by Light Sensor |
| View Distance | 1m ~150m |
| Work Temperature | -20℃ ~ 50℃ |
| Humidity | 0% - 95% RH |
| Input Volatge | 110V ~ 240V AC / 5V ~ 16VDC |
| Power | < 200W Per Piece |
| Life Span | 100000 Hours |
| Installation | Hanging Brackets / Wall/Ceiling Mounting |
| Maintaince | Front/Back Side |
| Cabinet | Iron Steel in Black Color |
| Front Side | UV Protection Acrylic Board |
| Display Function | Only Numbers |
Gas Price Sign Descripition
Specification :
1) Use of the environment: Outdoor Gas Station / Service Station
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' /
20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame
,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box /
Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v
~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 650mm x 1570mm x 170mm ( Carton )
Packing and Logistics
1. Where do you load the goods?
We offer shipment by sea or by air as requested by the buyer. The
sea port we are used : Shanghai Sea port The airport we are used :
Shanghai Airport
2. What is the lead time ?
Usually, the lead time is 7-10 days. 3. Which logistics company do you cooperate with? Our company cooperates with COSCO, APL, CMA, CSAV, K-LINE, MSC and
etc. For courier, it’s up to buyer’s option. We will give
suggestion according to the time table of the steamers and their
services.
Technology Cooperation
Hardware :
1) As Final Output Equipment
2) Provide Function Of Data Collection
3) Building the Synchronous Communication Architecture
4) To be the matching Display Equipment
5) Establish Platform for Man-machine communication
6) Form a complete set of electromechanical integration equipment
Software :
1) Building the Synchronous Communication Signal
2) Provide the Outside data feedback
3) Provide the Usual Data Feedback
4) Network Support
5) Form a complete set of electromechanical integration equipment
signal
Special Product Customization :
1) Special 7 Segments Digit for Size and Shape
2) Special 16 Segments Digit which is displayed Letter (A -Z)
3) Manufacture Different Size and Color for Signal instruction
Light
4) Multi – Function Communication
About Linger
1.We are a reliable and professional supplier for led board in
China for 11 years. We are specialized in
dealing a wide range of led product such as led scoreboard,led gas
price sign,led message sign ,led
clock,led display and other led display. Since now we have so many
fixed customers from all of the
world.
2.We accept the Customized Product or MOQ is one unit. At least 95%
of led scoreboard is customized
type by our design on our website. We are specialized for
scoreboard controller function design
especially Australia sport of scoreboard like Australia Football
board and Cricket board.
3. We supply you the most led products with the competitive price,
high quality, fast delivery and best
service. We are direct seller of led board and display, you can get
the most competitive price from us.
Warmly welcome to contact us, and of course, you can visit our
factory if you want.
