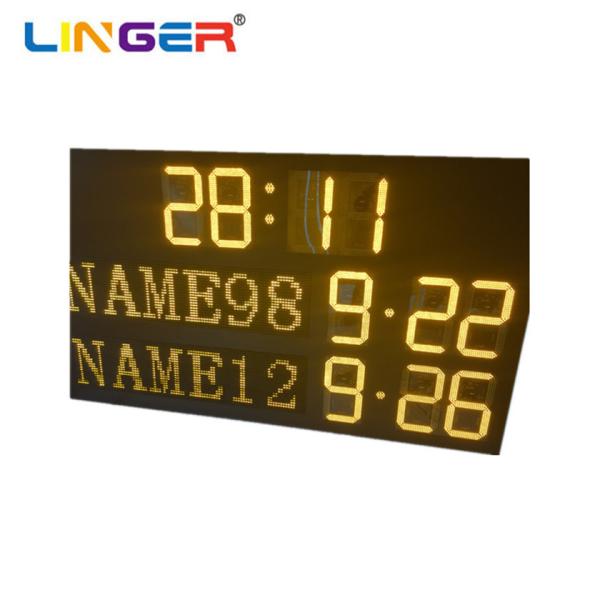

16'' Digit Electronic Led Tennis Scoreboard with Player Name

• High intensity 5000-9500mcd UV protected LED.
• Ultra-wide light emitting diode which enables clear visibility in direct sunlight in any viewing angle.
• CREE USA LED. 100,000 hours design life.
• 5mm Oval CREE Screen Master Series LED.

• Operating frequency 470Mhz.
• Power requirement 4 x 1.5V AA Alkaline battery.
• Max Button on the controller is 4 x 8
• 1602 Yellow/Green Backgournd light LCD screen.
• Operating temperature range -10°C to +60°C or 14°F to 140°F.
• Operational range >300 meters.
• Weight is about 800g
• Controller box Size (W x H x D) 145*222*58mm

• PCB Material FR4
• 1.6mm thickness
• Copper weight 1oz
• Thermal Stress > 288 Celsius
• Dimensional Stability, E-2/150
• Flammability Classification UL94 V0
• Water Absorption E-1/105 0.10%
• Peel Strength After thermal stress 11lb./in after 10s/288 Deg.C
• Flexural Strength 100,000 lbf/in^2 lengthwise, 75,000 lbf/in^2 crosswise
• Resistivity after damp heat volume 10^8 M ohms cm
• Resistivity after damp heat surface 10^8 M ohms
• Dielectric breakdown parallel to laminate >60KV
• Dielectric constant @ 1MHz 4.7
• Dissipation factor @ 1MHz 0.014
• Q-resonance @ 1MHz >75
• Q-resonance @ 50MHz >95
• Arc resistance 125s
• Glass transition temperature 135 Deg. C
• Temperature index 130 Deg.C
• Specific gravity 1.8-1.9
• Rockwell hardness (M scale) 110
• Thermal conductivity 2.2-2.5 cal/h. cm Deg C

Jiaxing Linger Electronic Technology Co., Ltd. is a collection of science and technology development, production and sales in one of the high-tech Company.Company engaged in LED products, including LED scoreboard, LED oil prices display, LED clock display and LED indoor and outdoor advertising display for 11 years.


Has a lot of experienced hardware engineers, software programmers, as well as doctor or master, and other high-tech talent.Absorption and integration of domestic and foreign electronics industry advanced technology, development and production of LED display ,automation equipment, and other areas of high-tech products.


We are devoted to the specialization of custom-built LED products to meet the special needs of each customer, the product market covers the world.
The company has excellent staff, first-class production environment ,rigorous and efficient enterprise management system.


The company has a variety of test equipment for all products to do strict quality testing, and has passed CE and ROHS certification.

Company always revolve around to the "High quality and Customer first" business purposes.Constantly pursuing the spirit of excellence. With first-class quality, high-quality services continue to meet the new needs of modern technology.
