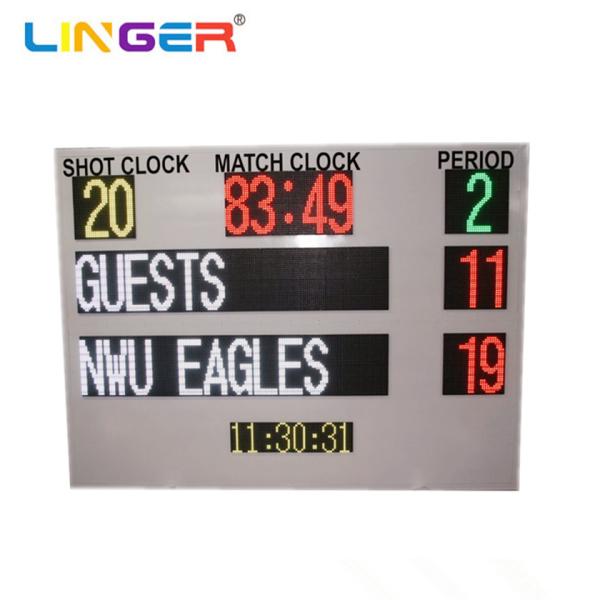

Colorful Led Electronic Scoreboard with Wireless Control
DESCRIPITON---------------------------------------------------------------------------------------------------------------------------------
2022 Year New Development Scoreboard with wonderful Design. We use
the SMD Led module which is made full color display to make the
colorful scoreboard. Each Led Module size is 160mm * 320mm .The
advantage of the design is the Colorful. Each number can be set by
different 7 kinds of Color manually. The Wireless Control distance
can be 150m - 250m . It is with long control distance.
| Brand | Linger |
| Type No. | SMD-Scoreboard |
| Board Size | 1400mm L * 2100mm H * 90mm T |
| Moving Stand | OPTION |
| Led Module Pixel Pitch Size | 10mm |
| LED Type | SMD |
| Each Module Size | 160mm * 320mm |
| Power Supply | AC110V ~ 240V , 50-60Hz |
| Control Model | Wireless Controller Box with AA Battery |
| Communication Type | Wire / Wireless |
| Mounting /Installation | Brackets for Hanging / Tripod / Holder / Moving Stand |
| Front Face option | 2mm Acrylic Panel (Option) |
| Frame Color | Black or Any Color (Option) |
| Acrylic Lens | Best Quality and Non- Reflective |
| Power Plug | UK,Europe,China,Australia,USA,etc.. |
| Whole Product | Completely Silent Operation and Minimal Generated |
| Waterproof | IP65 |
| View Distance | 1m ~ 200m |
| Communication Distance | 1m ~ 100m (Wire) / 1m ~ 250m (Wireless) |
| Brightness | > 8500mcd / m2 |
| Life Span | 100000 Hours |
| Net Weight | 30KGS/M2 |
| Adv.Power | < 150W |
| Warranty | 12 Months |
AVALIABLE
OPTION------------------------------------------------------------------------------------------------------------------------
Wireless PC Software as Control
Pair Of Shot Clock
Single Line VMS text/sponsor/message display
10 Years Extended Warranty
Certificate of Original
PACKAGE DETAILS------------------------------------------------------------------------------------------------------------------------
1. The thickness of the board used in the wooden box is 15mm-20mm.
2. The wooden box is connected with iron sheet around.
3. The height of the pallet exceeds 15 cm, which is convenient for
forklift handling.
4. The cover of the wooden box is reinforced with wooden strips.
Prevent heavy objects from crushing.
5. Use 2 cm thick foam inside the box.
6. Wooden strips are used to separate the display from the display
to prevent scratches.
7. If necessary, the display screen can be individually packaged in
a carton and then placed in a wooden box.
MORE ABOUT
US-----------------------------------------------------------------------------------------------------------------------------
Our Service:
The seller should provide on the-spot installation instruction
service for the buyer, including:
1) To check whether the bracket and frame are in conformity with
the technical requirements of the structure scheme the seller
provided.
2) To instruct the buyer's technicians to install the LED module
cases and connection among those cases.
3) To experiment and adjust the whole panel, examine and repair the
defective devices, guarantee panel in secure operation.
4) To train the buyer's technicians.
5) To send the user manual to the buyers.
