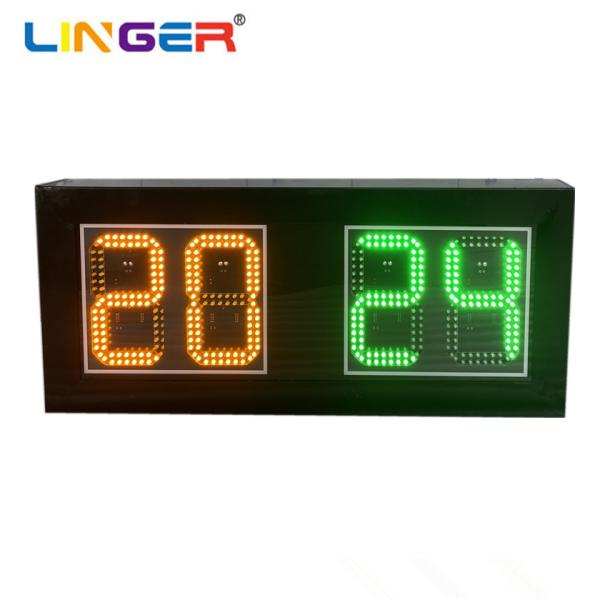

Olympic Volleyball Electronic Scoreboard with 8inch DIP Digit
INFORMATION----------------------------------------------------------------------------------------------------------
- This Scoreboard without Game Time. It is only with 1 pair of
scores.
- Score can count from 00-99 by press button.
- Score Digit Color can be in Red or white or blue or yellow or
green.
- Use Remote control that control distance is more than 15m.
- With Intallation brackets on the side of scoreboard.
- Net Weight is not more than 4kgs.
- Fron face with 4mm Thickness acrylic board (not PC Board)
- Provide 1 piece of remote control as spare part for free.
- Remote Control us 9V Battery to work.
PARAMETER--------------------------------------------------------------------------------------------------------------------
| Name | Simple Scoreboard |
| Brand | Linger |
| Type No. | LCS-4D200RG |
| Board Size | 230mm H * 650mm L * 90mm T |
| Led Chip Color | Red + Green |
| Digit Height | 8inch 200mm |
| Power Supply | AC110V ~ 240V , 50-60Hz / Support 12V Battery |
| Control Model | Wireless / Wire Control Box |
| Controller Design | With LOGO (Customized) |
| Mounting Bracket | Brackets for wall hanging / Sucker Support |
| Front Face | 4mm Acrylic Panel + Inkjet Printing Film |
| Frame Color | Black or Silver Color (Option) Durable and elegant Aluminum Frame |
| Acrylic Lens | Best Quality and Non- Reflective |
| Power Plug | UK,Europe,China,Australia,USA,etc.. |
| Whole Product | Completely Silent Operation and Minimal Generated |
| Waterproof | Waterproof Cabinet for Outdoor |
| LOGO | Customized |
| Life Span | 100000 Hours |
DIP DIGIT
ADVANTAGE--------------------------------------------------------------------------------------------------
1. Simple Horn Socket
The Simple Horn Socket can lock the Signal Cable Heat to Prevent it
from Falling off during shock.
2. Large Value Capacitor
It is Avaliable for Rectification Filtering.
3. Large Value Chips
These 2 Chips can Improve the signal and make the signal Immune to
External Interference . With Separate Control Function.
4. SMD Resistor
The Chip Resistor will protect the Led Current to Extend the Lamp
Life.
5. Transistor
The Transistor can Guarantee High - Current Driver without any
problems
CONTROLLER BOX
DESCRIPTION-------------------------------------------------------------------------------------
- Customized Function for the controller box buttons
- Support Battery AA
- Support AC 110V ~ 240V
- Distance > 150M
PACKAGE
ADVANTAGE----------------------------------------------------------------------------------------------------
1.The thickness of the board used in the wooden box is 15mm-20mm.
2.The wooden box is connected with iron sheet around.
3.The height of the pallet exceeds 15 cm, which is convenient for
forklift handling.
4.The cover of the wooden box is reinforced with wooden strips.
Prevent heavy objects from crushing.
5.Use 2 cm thick foam inside the box.
6.Wooden strips are used to separate the display from the display
to prevent scratches.
7.If necessary, the display screen can be individually packaged in
a carton and then placed in a wooden box.
FOR MORE
INFORMATION------------------------------------------------------------------------------------------------
1. We are manufacturing company and engaged in LED Scoreboard for
11 years.
2. The Yellow Color is best for brightness in day and night. Best
Option for outdoor use .
3. The digits are DIP type ,not the cheap Segment tube .We use
twice number of leds than other companies.
4. Front Face with 8mm thickness Acrylic Glass Board with UV
Protection (Not the PC board)
5. 12'' digit with 210pcs of diodes
6. The cabinet is Waterproof and IP 65 (Front) IP54 (Rear)
7. The warranty is 1 Year.
