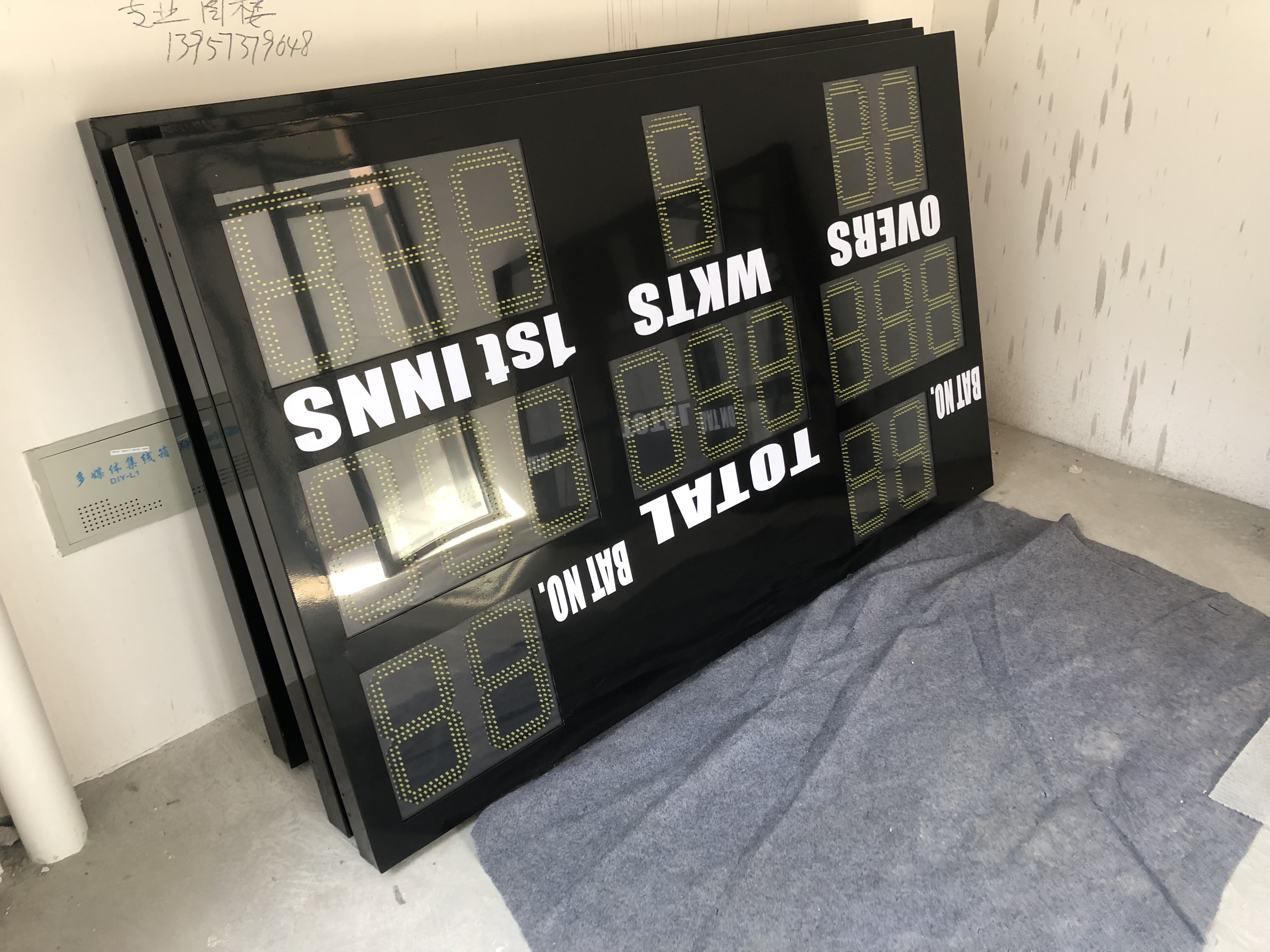

LED Cricket Scoreboard with 8mm Acrylic Board for front face
DIP DIGIT
ADVANTAGE--------------------------------------------------------------------------------------------------
1. Simple Horn Socket
The Simple Horn Socket can lock the Signal Cable Heat to Prevent it
from Falling off during shock.
2. Large Value Capacitor
It is Avaliable for Rectification Filtering.
3. Large Value Chips
These 2 Chips can Improve the signal and make the signal Immune to
External Interference . With Separate Control Function.
4. SMD Resistor
The Chip Resistor will protect the Led Current to Extend the Lamp
Life.
5. Transistor
The Transistor can Guarantee High - Current Driver without any
problems
PARAMETER--------------------------------------------------------------------------------------------------------------------
| Name | Cricket Scoreboard |
| Brand | Linger |
| Type No. | LCS-19D300Y |
| Board Size | 1300mm H * 2100mm L * 90mm T |
| Led Chip Color | Yellow |
| Digit Height | 12inch 300mm |
| Power Supply | AC110V ~ 240V , 50-60Hz / Support 12V Battery |
| Control Model | Wireless / Wire Control Box |
| Controller Design | With LOGO (Customized) |
| Mounting Bracket | Brackets for wall hanging / Sucker Support |
| Front Face | 8mm Acrylic Panel + Inkjet Printing Film |
| Frame Color | Black or Silver Color (Option) Durable and elegant Aluminum Frame |
| Acrylic Lens | Best Quality and Non- Reflective |
| Power Plug | UK,Europe,China,Australia,USA,etc.. |
| Whole Product | Completely Silent Operation and Minimal Generated |
| Waterproof | Waterproof Cabinet for Outdoor |
| LOGO | Customized |
| Life Span | 100000 Hours |
CONTROLLER BOX
DESCRIPTION-------------------------------------------------------------------------------------
- Customized Function for the controller box buttons
- Support Battery AA
- Support AC 110V ~ 240V
- Distance > 150M
DELIVERY & PACKAGE
----------------------------------------------------------------------------------------------------
Order Quantity < 500 : 7days ~ 8days.
Order Quantity < 1000 : 10days ~ 15days.
Order Quantity > 1000 : 15days ~ 20days.
Sea Shipment need 25days to arrive.
Air and Express Shipment need 3-5days to arrive.
FOR MORE
INFORMATION------------------------------------------------------------------------------------------------
1. We are manufacturing company and engaged in LED Scoreboard for
11 years.
2. The Yellow Color is best for brightness in day and night. Best
Option for outdoor use .
3. The digits are DIP type ,not the cheap Segment tube .We use
twice number of leds than other companies.
4. Front Face with 8mm thickness Acrylic Glass Board with UV
Protection (Not the PC board)
5. 12'' digit with 210pcs of diodes
6. The cabinet is Waterproof and IP 65 (Front) IP54 (Rear)
7. The warranty is 1 Year.
