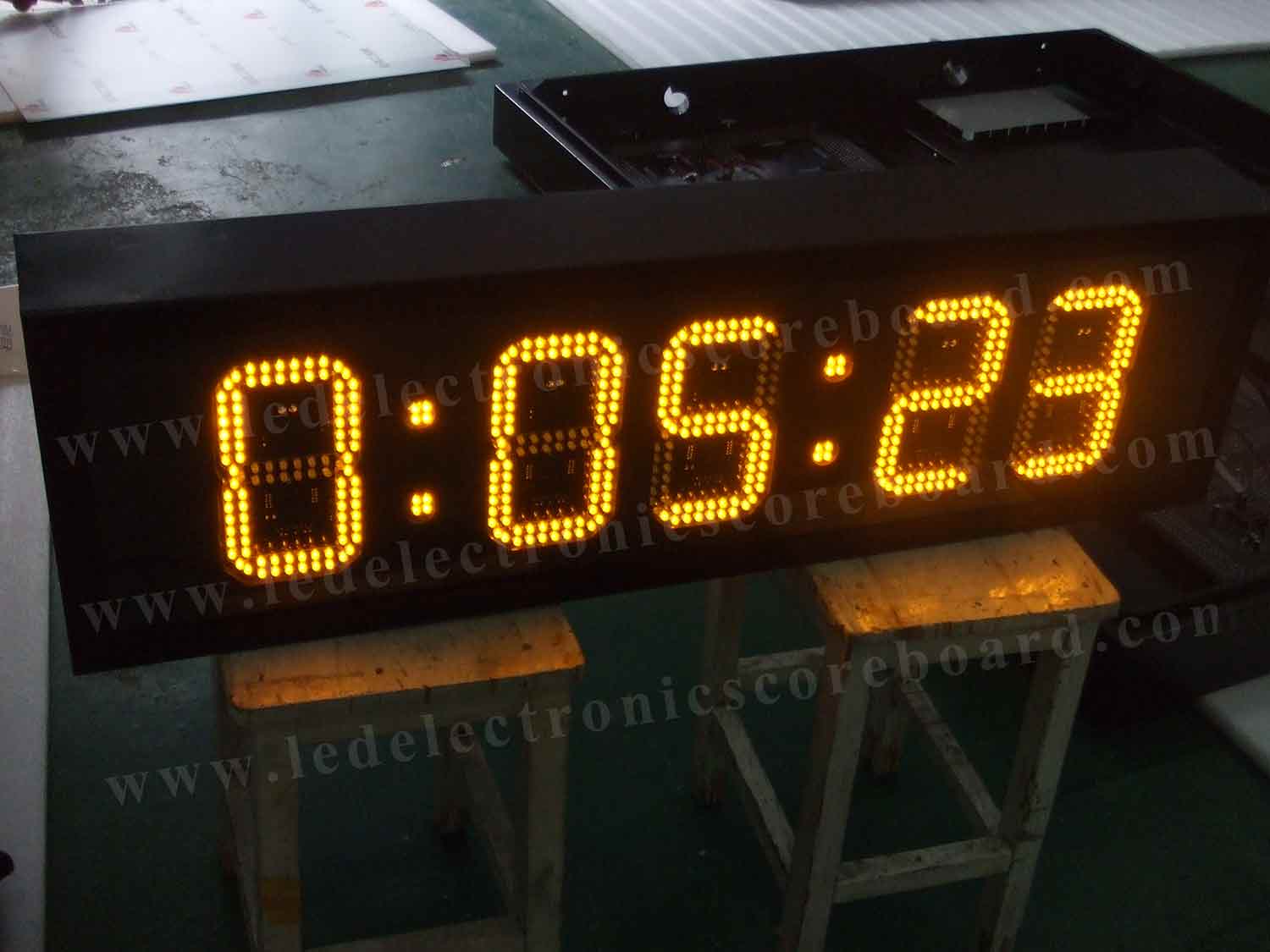

Portable and light Regular 5Digits in Yellow Color LED Digital
Clock for indoor
Timer Descripition
Specification :
1) Use of the environment: Outdoor and Indoor
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' /
20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame
,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box /
Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v
~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Tripod / With wheels / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 370mm x 920mm x 170mm
PRODUCT PARAMETER |
| Format : | 8 : 88 : 88 | Color : | Yellow |
| Display Size : | 300mm x 850mm | Thickness : | 100mm |
| Digit Size : | 8'' 200mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Installation Method
For Indoor Scoreboard :
1) Bracket / Bracket with wheels
2) Hanging with Hooks and it is dangly
3) Hanging on the Wall and it is fixed on wall
4) Hanging on the pillar with anchor ear
For Outdoor Scoreboard:
1) Portal Frame
2) Hanging on the Wall and it must be fixed
3) Hanging on the pillar with anchor ear
4) Bracket / Bracket with wheels ( Only for small size )
5) Hanging into Wall and Fixed
Attention Matters:
Dissipate Heat and Drainage - Inform us the installation method in
advance ,we will make
right method on scoreboard.
Maintenance - Easy to do maintance from front or back side .
Stable and stronger Method - Weatherproof
Dimensions / Function
Dimension:
| Model | Timer Size | Package Dimension |
| 8'' 200mm | 300mm x 850mm x 100mm | 370mm x 920mm x 170mm |
| 10'' 254mm | 350mm x 1050mm x 100mm | 420mm x 1120mm x 170mm |
| 12'' 300mm | 370mm x 1300mm x 100mm | 440mm x 1370mm x 170mm |
| 16'' 400mm | 610mm x 1670mm x 100mm | 680mm x 1740mm x 170mm |
| 20'' 500mm | 700mm x 1900mm x 100mm | 770mm x 1970mm x 170mm |
| 24'' 600mm | 770mm x 2000mm x 100mm | 840mm x 2070mm x 170mm |
| 30'' 750mm | 920mm x 2670mm x 100mm | 990mm x 2740mm x 170mm |
Timer Function:
1.Display : Hours : Minutes : Seconds (Support 12/24 Hour)
2.Count up : Count from zero to 9 hours 59 minutes 59 seconds
3.Countdown : Count from 9 hours 59 minutes 59 seconds to zero
4.Stopwatch : minutes, seconds and 1/100 of seconds format,zero up
to 9:59:99
5.Interval timer: interval repeating countdown/ count up timer, max
99 rounds
Available Option:
* Install GPS inside as Clock ,then it can search time and Display
AUTO.
* Timer can work by Battery .
* Colon between the digits can be dark and the timer can be used to
display Sports / Game Scores.
* Extra Function to display Temperature.
Cautions when using Scoreboard
1. Confirm the Scoreboard Input Power is 110V or 220V .110V input
power are unable to use by 220V
power socket.
2. Controller box is not waterproof, please avoid to touch the
water.
3. Don’t change any electronic part if there is no any professional
technician.
4. Not for Children under 12Years.
5. Stored in a dry environment, avoid direct sunlight.
6. Avoid heavy objects hit the front galss board.
