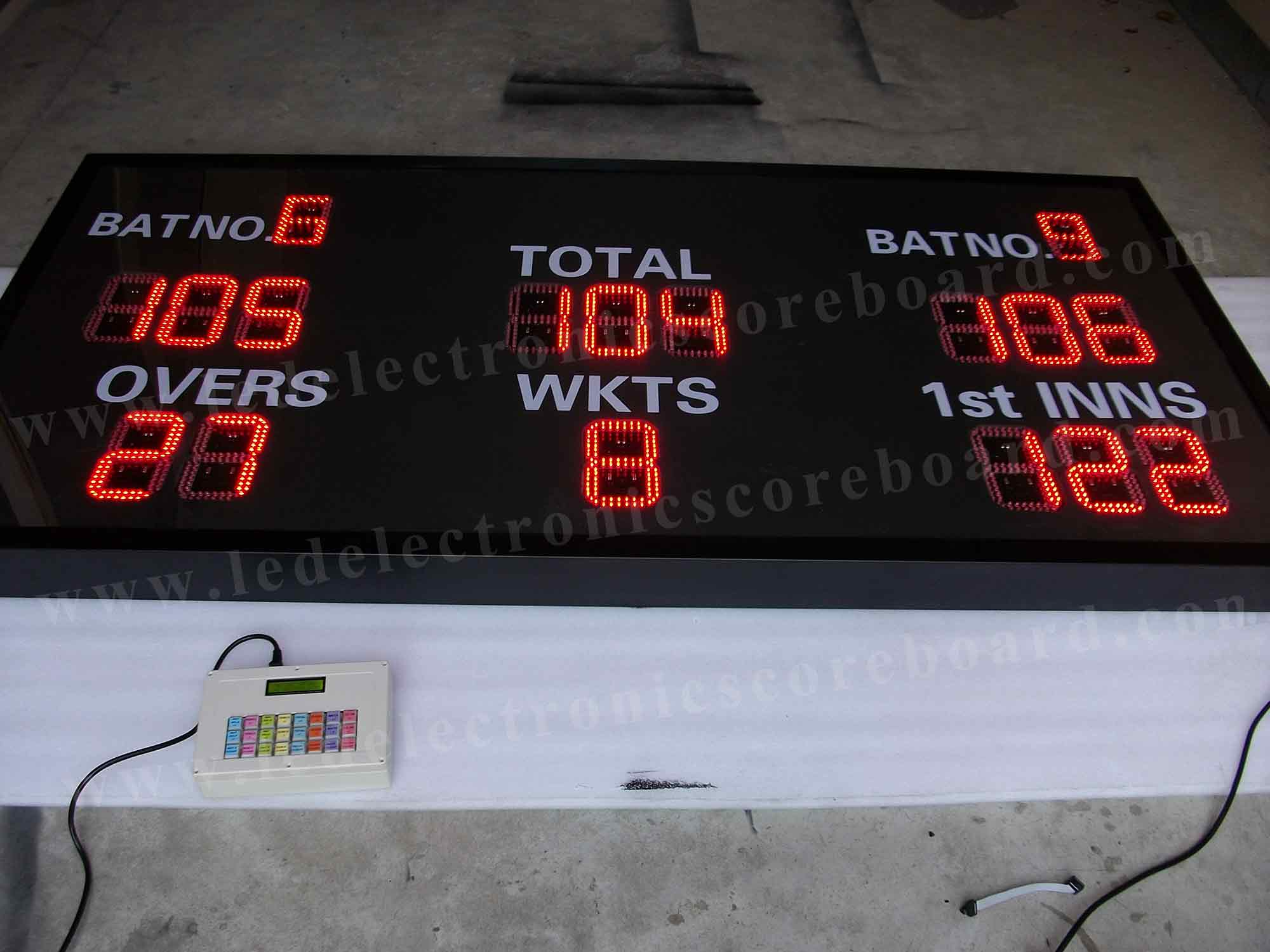

High Quality and Wireless Buttons Controller LED Cricket Scoreboard
for stadium
| PRODUCT INFORMATION |
| Model No. : | LG-LCS-17D200R |
| Dight Height and Color : | 8'' 200mm Height in Single Red Color |
| Display Dimension : | 3.3ft x 5.2ft ( 1000mm*1600mm*90mm ) |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 160m |
| Application : | Cricket Game |
| Frame Color : | Black / others |
| Printed Letters | Sticker in White Color |
| Brightness : | > 5000mcd / sqm |
| Waterproof : | Outdoor Type |
| Frame Material : | Iron / Steel |
| Viewing Angle : | >110° |
Scoreboard Description for Cricket Kind
Function : Display Score
Parameters :
1) Use of the environment: Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 8 Inch
4) Display Color : Red Color (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage: Total 17 pieces digits ,8 inch height character
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ; 0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1070mm x 1670mm x 150mm (Carton)
Screen Dimension : 3.3' x 5.2' x 4''
Function
BAT No. 1 : 1digit to display number from 0 - 9
BAT No. 2 : 1digit to display number from 0 - 9
RUNS 1 : 3digits to display number from 000 - 999
RUNS 2 : 3digits to display number from 000 - 999
TOTAL : 3digits to display number from 000 - 999
OVERS : 2digits to display number from 00 - 99
WKTS : 1digit to display number from 0 - 9
1st INNS : 3digits to display number from 000 - 999
Sticker in white Color on the Scoreboard can be any Letters.
Function Option : Brightness Adjust / Clear Score
Any Special Function is Welcome !
1. Existing samples can be provided but not for free of charge.
2. Customized size and layout design are welcome.
3. Sample will be finished about one week.
4. Photos for sample will be sent to confirm befor the shippment.
5. Good after-sale service - any quality problem , we will do our
best to help solve the problem.
6. Large size sample will shipped by air or sea . Sample with small
size and light will send by express.
Scoreboard Dimension Option
Model # Digit Size Scoreboard Size
CS - 19D - 200 8'' 200mm 3.3' * 5.2' * 4'' / 1000mm * 1600mm *
100mm
CS - 19D - 300 12'' 300mm 4' * 6.9' * 4'' / 1200mm * 2100mm * 100mm
CS - 19D - 400 16'' 400mm 6' * 10' * 4'' / 1800mm * 3000mm * 100mm
CS - 19D - 500 20'' 500mm 5.2' * 13' * 4'' / 2100mm * 4000mm *
100mm
FAQ
Q1. What is your payment ?
A : We accept T/T , Wester Union , Paypal.
Q2. When can you arrange the shipment after i have placed an order
?
A : Usually about 10days after receiving Payment.
Q3. Can you accept customized ?
YES.Welcome!
Q4. Is it OK to print my logo on the product?
A : Yes. Please inform us formally before our production and
confirm.
