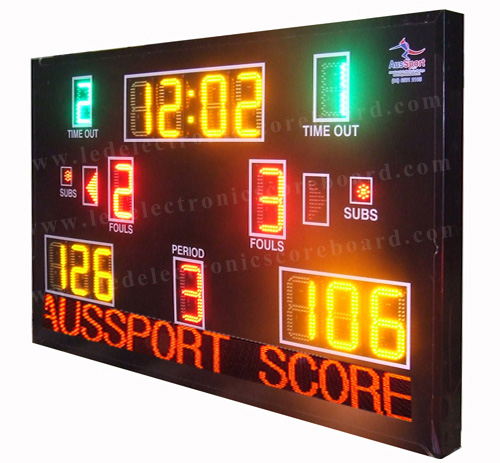

220V / 110V AC Wireless Buttons Controller Electronic Led
Scoreboard for Basketball
| PRODUCT INFORMATION |
| Model No. : | LG-LBS-15D200RGY- VMS |
| Dight Height and Color : | 8'' 200mm Height in Red / Green / Yellow Color |
| Display Dimension : | 4.3 ft x 6.6 ft ( 1300mm x 2000mm x 100mm ) |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 300m |
| Application : | Basketball Game |
| Frame Color : | Black / other Colors |
| Printed Letters | Sticker in White Color |
| Brightness : | > 5000mcd / sqm |
| Waterproof : | Outdoor Type |
Basketball Scoreboard Descripition
Function : Display Basketball Game Score and Information.
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 8'' 200mm
4) Display Led Color : Red / Green / Yellow (Any other kind is
Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage: 15 Pieces digits ,8 inch in three different
colors
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1370mm x 2070mm x 160mm (Carton)
Screen Dimension : 4.3' x 6.6' x 4''
Function
Game Time :
1) 4-Digits to Display : MM : SS
2) Countdown / Count Up / Day Time is Option
3) Set time by Controller with Buttons for MIN +1 -1 , SEC +1 -1
Team Score : Home and Guest Scores : 3digits display number from
000 - 999
Time Out : 1 Digit display number 0 - 9
Fouls : 1 Digit display number 0 - 9
Period : 1 Digit display number 1 - 4
Subs / Arrows : On / Off
Siren : With Siren ,when time reach to 00 : 00 ,it will sound for
5''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
Features
1. Linger devote to design the different sports of customized
scoreboard, any kind of digit height and digit color is made for
different scoreboard.
2. Scoreboard controller type can be with cable or wireless type.
3. The brightness is enough for outside in day and night.
4. Scoreboard with Iron waterproof cabinet and prevent the impact.
5. The front face is acrylic glass board to protect digits and the
acrylic glass board is UV Protection type.
About Sample
1. Existing samples can be provided but not for free of charge. 2. Customized size and layout design are welcome.
3. Sample will be finished about one week.
4. Photos for sample will be sent to confirm befor the shippment.
5. Good after-sale service - any quality problem , we will do our
best to help solve the problem.
6. Large size sample will shipped by air or sea . Sample with small
size and light will send by express.
Packing and Logistics
1. Where do you load the goods?
We offer shipment by sea or by air as requested by the buyer. The
sea port we are used : Shanghai Sea port The airport we are used :
Shanghai Airport
2. What is the lead time ?
Usually, the lead time is 7-10 days. 3. Which logistics company do you cooperate with? Our company cooperates with COSCO, APL, CMA, CSAV, K-LINE, MSC and
etc. For courier, it’s up to buyer’s option. We will give
suggestion according to the time table of the steamers and their
services.
