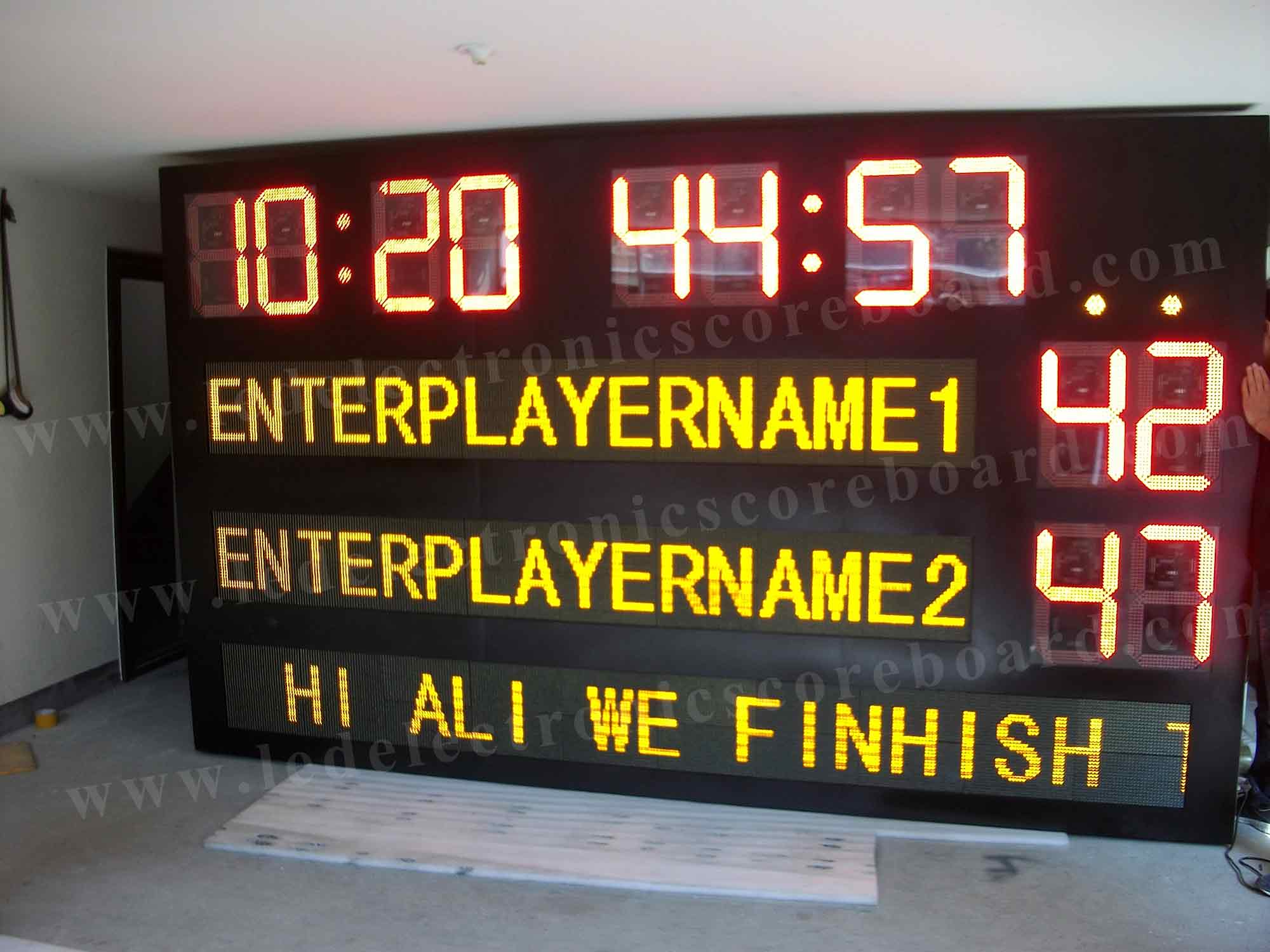

Large Digits and High Quality Led Electronic Scoreboard For
Football Sport
| PRODUCT INFORMATION |
| Model No. : | LG-ES12D400Y-VTM |
| Dight Height and Color : | 16'' 400mm Height in Red Color |
| Display Dimension : | 6.9 ft x 11.5 ft x 4inch ( 2100mm x 3500mm x 100mm ) |
| Team Name Height and Color : | P10mm Led Module in Yellow Color |
| Team Name Size : | 320mm x 2560mm x 2 Names |
| Moving Message Sign : | P10mm Led Module in Yellow Color |
| Message Sign Size : | 320mm x 3200mm x 1 Line |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 800m |
| Application : | Multi - Sports |
| Frame Color : | Black / other Colors |
| Printed Letters | Sticker in White Color for Any letters |
| Weight : | 160kgs |
| Waterproof : | Outdoor Type |
Scoreboard Descripition
Function : Display DAY TIME , GAME TIME ,TEAM SCORES , with Moving Message
Sign
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 16'' 400mm
4) Display Led Color : Red and Yellow (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
6) Team Name : Pitch10mm - 320mm x 2560mm / Per Team Name
7) Moving Message Sign : P10mm - 320mm x 3200mm x 1 Line
Overall Structure :
1) Display usage:
12 Pieces digits , 16 inch character in Red Color
52 Pieces Led Modules ,Pitch10mm in Yellow Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
5) Controller Buttons for A - Z to enter the Team Name and Message
Letters
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 2170mm x 3570mm x 250mm (Wooden Case )
Screen Dimension : 6.9 ' x 11.5 ' x 4''
Function Descripition
Scoreboard is used for Multi - Sports
DAY TIME : 12/ 24 HOUR Mode ,Hours : Minutes - 4Digits
GAME TIME : Minutes : Seconds / Hours : Minutes - 4 Digits
Countdown / Countup Function
SCORE : HOME and AWAY - 2Digits for each one , display number 00 -
99
TEAM NAME : A - Z Letters enter by Controller Buttons or Windows
Software
Each Team Name Display Letters Max is 16 pcs .
Message SIGN : A - Z Letters enter by Controller Buttons or Windows
Software
Siren : Include . When time is reach to 00 :00 , it will sound for
5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
About Sample
1. Existing samples can be provided but not for free of charge. 2. Customized size and layout design are welcome.
3. Sample will be finished about one week.
4. Photos for sample will be sent to confirm befor the shippment.
5. Good after-sale service - any quality problem , we will do our
best to help solve the problem.
6. Large size sample will shipped by air or sea . Sample with small
size and light will send by express.
FAQ
Q1. What is your payment ?
A : We accept T/T , Wester Union , Paypal.
Q2. When can you arrange the shipment after i have placed an order
?
A : Usually about 10days after receiving Payment.
Q3. Can you accept customized ?
YES.Welcome!
Q4. Is it OK to print my logo on the product?
A : Yes. Please inform us formally before our production and
confirm.
Trade Terms
1. Do you accept OEM & ODM order?
Yes! We can produce products according to customers’ design and
samples.
2. What is MOQ?
MOQ can be 1unit.
3. How about the payment terms?
T/T ,Western Union,Paypal in advance .
4. Can I get samples from you?
Yes! Sample could be supplied. But it is not free.
5. What is the warranty?
It is 2 years.
6. What about the price level?
As a professional manufacturer who have been Specializing in the
production of led scoreboard,led gas
price sign,led message sign,led disply for more than 15years, we
are sure that our prices have a great
competitive advantage over the products at the same level.
