Paintall Sport With 3 Colors 12'' 300mm Digits Led Electronic
Scoreboard For outside use
| PRODUCT INFORMATION |
| Model No. : | LG - EPS-11D300RGY-7 |
| Dight Height and Color : | 12'' 300mm Height in Red and Yellow and Green Color |
| Display Dimension : | 3.6 ft x 5.6 ft x 4inch ( 1100mm x 1700mm x 100mm ) |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 350m |
| Application : | Paintball Sport |
| Frame Color : | Black / other Colors |
| Printed Letters | Sticker in White Color for Any letters |
| Weight : | 25kgs |
| Waterproof : | Outdoor Type |
Paintball / Skirmish Scoreboard Descripition
Function : Used for Paintball Sport and display GAME TIME,TIME OUT, 2 Teams
SCORE
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 12'' 300mm
4) Display Led Color : Red / Green / Yellow (Any other kind is
Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage:
11 Pieces digits , 12 inch character in 3 Colors
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1170mm x 1770mm x 160mm (Carton / Wooden Case )
Screen Dimension : 3.6 ' x 5.6 ' x 4''
Paintball / Skirmish Function Descripition

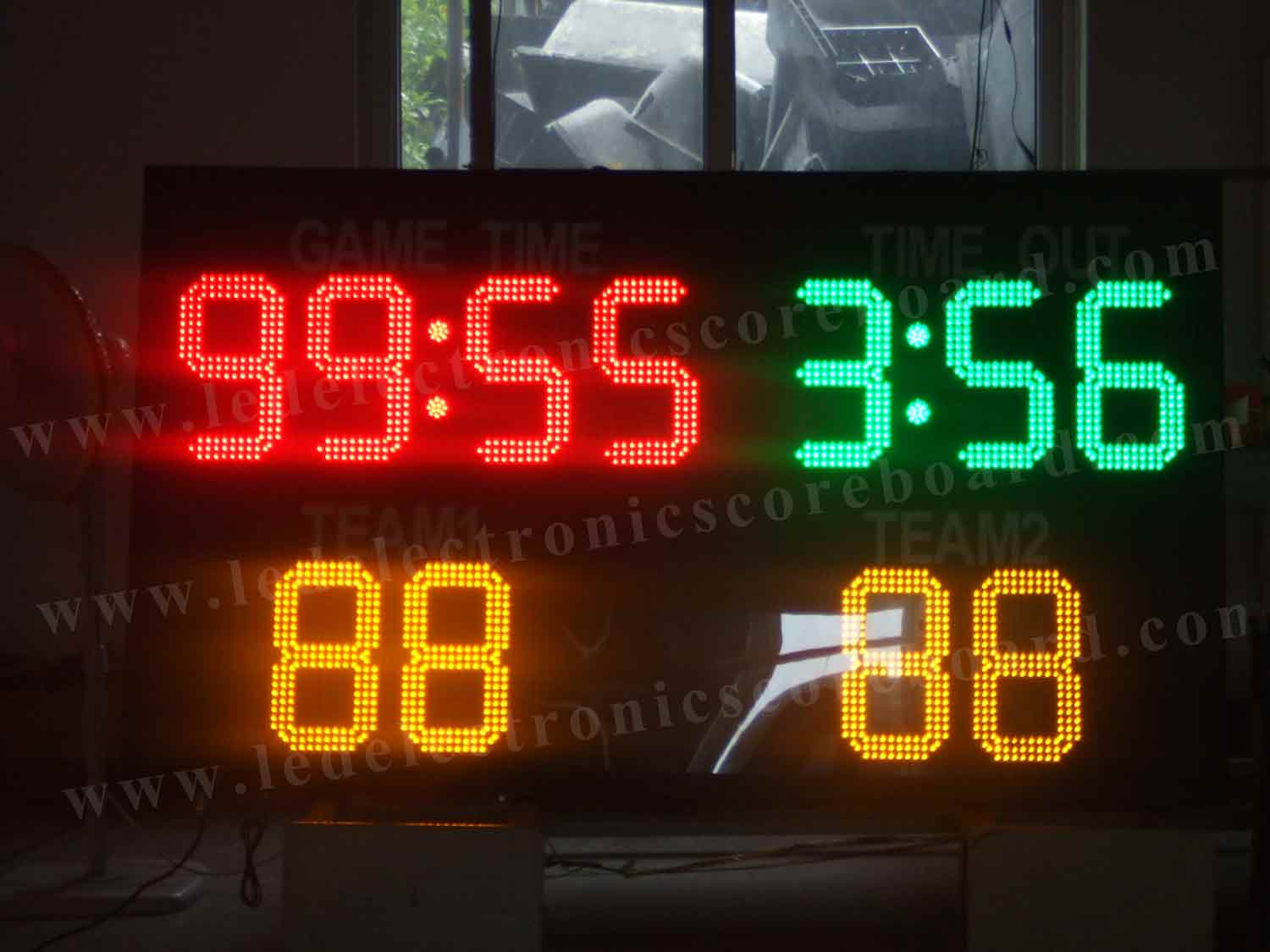

Paintball Scoreboard :
GAME TIME : Minutes / Seconds - 4 Digits can be set to count down from any time up to 99 mins:59
Sec
TIME OUT : Minutes / Seconds - 3 Digits to display
SCORE : Each Team with 2 Digits to display 00 - 99
Siren : Internal siren with external siren ,When time is reach to 00 :00 , it will sound for 5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
Scoreboard Design Details
1. To finish the scoreboard Layout drawing, or can send us the
photo of the scoreboard you need to
produce.
2. On the website we display a lot of Sport Scoreboards for
different games.To Select the similar
scoreboard picture and send us your idea or changes for this one.
3. After we talking about the all design details and changes ,new
confirmed scoreboard layout will be send
to confirm.
4. For the scoreboard size and Color ,the digit height and color
,all are negotiated.
5. To plus or reduce the digit on the scoreboard,make different
color in one scoreboard,make different
color for cabinet , print Logo on the scoreboard ,all requests are
available in the layout drawing.
FAQ
Q1. What is your payment ?
A : We accept T/T , Wester Union , Paypal.
Q2. When can you arrange the shipment after i have placed an order
?
A : Usually about 10days after receiving Payment.
Q3. Can you accept customized ?
YES.Welcome!
Q4. Is it OK to print my logo on the product?
A : Yes. Please inform us formally before our production and
confirm.
Product Design Principles
We always looking the trend of market and technology, develop the
new product with innovation and
special feature. Strong OEM ability and strictest QC system can make sure the mass
production quality
and delivery time.
We are a professional Led Scoreboard manufacturer in China. With
many years of experience since
2002 in producing Led Scoreboard products. Our company has complete quality management systems
and professional production equipment. We can design more than 100
styles by ourselves per year and
also we can arrange production according to customers' ideas and
samples.
