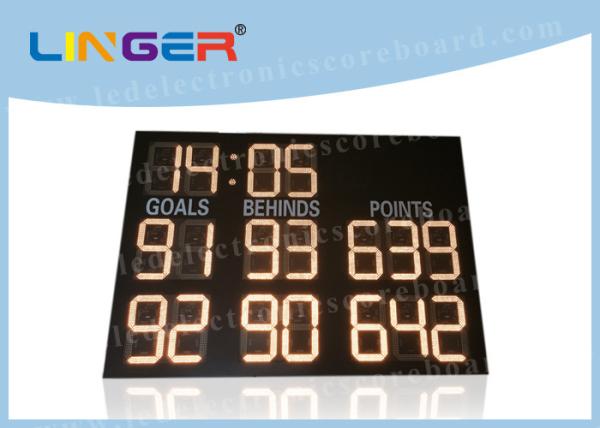

Large Stadium and UV Protection Led Electronic Scoreboard For
Scooer Sport
| PRODUCT INFORMATION |
| Model No. : | LG-AFL-18D400Y |
| Dight Height and Color : | 16'' 400mm Height in Yellow Color |
| Display Dimension : | 4.6 ft x 7.2 ft x 4inch ( 1400mm x 2200mm x 100mm ) |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 500m |
| Application : | AFL (Football Sport and Cricket Sport ) |
| Frame Color : | Black / other Colors |
| Printed Letters | Sticker in White Color for Any letters |
| Weight : | 100kgs |
| Waterproof : | Outdoor Type |
AFL Scoreboard Descripition
Function : Display TIME / GOALS / BEHINDS / POINTS
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 16'' 400mm
4) Display Led Color : Yellow (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage:
18 Pieces digits , 16 inch character in Yellow Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
5) Controller Buttons for A - Z to enter the Team Name Letters
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1270mm x 2270mm x 160mm (Carton / Wooden Case )
Screen Dimension : 4.6 ' x 7.2 ' x 4''
AFL Function Descripition
AFL Scoreboard with 2 Modes : Football (Aussie) Mode and Cricket
Mode
TIME : Minutes / Seconds for Football Mode , Hours : Minutes for
Cricket Mode - 4 Digits to display
Footbal Mode Mode :
GOAL - 2 Digits Display score number 00 - 99 ( GOAL + 1 = TOTAL + 6
)
BEHINDS - 2 Digits Display score number 00 - 99 ( BEHINDS + 1 =
TOTAL + 1)
TOTAL - 3 Digits display score number 000 - 999
Cricket Mode Mode :
BATSMEN RUNS - 3 Digits display number 000 - 999
WICKETS - 2 Digits display number 00 - 99
OVERS - 2 Digits display number 00 - 99
BATEMAN TOTAL - 3 Digits display number 000 - 999
CHASING - 3 Digits display number 000 - 999
Siren : Include . When time is reach to 00 :00 , it will sound for
5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
