Outdoor and Indoor Frame with wire controller Box Digital Led
Scoreboard for Football Game
| PRODUCT INFORMATION |
| Item No. : | LG-LFS300400500R-14D |
| Dight Height and Color : | 12'' 300mm / 16'' 400mm / 20'' 500mm Height in Single Red Color |
| Size : | Scoreboard : 1600mm* 3000mm*100mm |
| Controller Type : | PVC Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 600m |
| Application : | Football Game |
| Work Temperature : | -20℃ ~ 60℃ |
| Humidity : | 0% - 95% |
| Brightness : | > 5000mcd / sqm |
| Waterproof : | IP60 |
Descripition

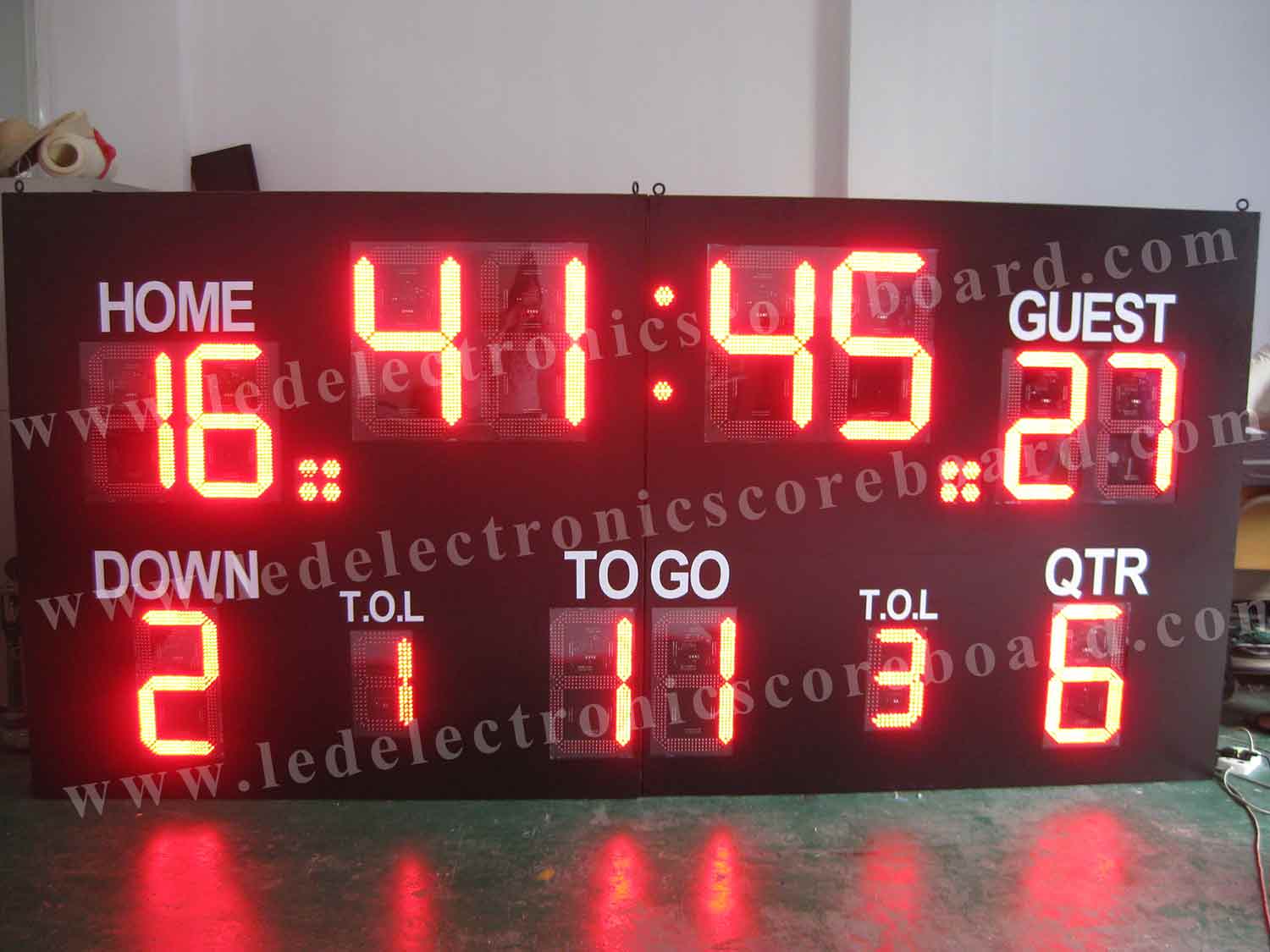

Scoreboard used for American Football Kind. The function like below
:
1> GAME TIME : Minute : Second 00:00 ~ 99:59 (It also can be Day
time Clock)
2> HOME : 00 - 99 to change by Controller Box buttons .
3> GUEST : 00 - 99 to change by Controller Box buttons .
4> TO GO : 00 - 99 to change by Controller Box buttons .
5> DOWN : 0 - 9 to change by Controller Box buttons .
6> QTR : 0 - 9 to change by Controller Box buttons .
7> With Siren : It can sound when time to be Zero .
8> CLEAR button : Clear the all numbers to be Zero and Start new
Game .
Sticker in white Color on the Scoreboard can be any Letters.
Function Option : Brightness Adjust / Clear Score
Any Special Function is Welcome !
Specification
1. Size : Scoreboard - 1600mm*3000mm*100mm
2. Digit Height : 12'' 300mm / 16'' 400mm / 20'' 500mm
3. Color : Red Color (Also can make in Green ,Yellow ,Blue ,White )
4. Controller : Buttons PVC Controller Box for Wireless Type or PC
software .
5. Controller Operation Distance : 1m ~ 800m
6. Scoreboard View Distance : 1m ~ 600m
7. Brightness : > 5000mcd / sqm
8. Work temperature : -20℃ ~ 60℃
9. Humidity : 0% - 95%
10. Main Power Input : 110V ~ 220V
1) Hard - Wire Controller with cable .
2) Sponsor Panel Graphics or Text information.
3) 12v Rechargable battery power pack with 240v inverter
4)
Pair of Electronic Batsman Name Displays (200mm, 8-10 digits)
Pair of Electronic Batsman Name Displays (300mm, 8-10 digits)
Pair of Electronic Batsman Name Displays (400mm, 8-10 digits)
Pair of Electronic Batsman Name Displays (500mm, 8-10 digits)
5)
Single Line VMS text/sponsor/message display (300mm)
Single Line VMS text/sponsor/message display (400mm)
Single Line VMS text/sponsor/message display (500mm)
6) 10 Year Extended Warranty
7) Mobile Trolley on Pneumatic Wheels
Q1: What should I do if my Scoreboard is not working properly?
Check the Input Power is with right Volatge. Some countries use
110V and Some Countried use 220V.
If the controller box is without Battery. That must be a power
cable to connect to 110V / 220V plug.
Any other problem can contact with us and take photos for us to
check .
Q2: What is the correct way to store the scoreboard ?
1. Keep out of the reach of children under 8 years.
2. Do not store in dampness and high temperature places.
3. Avoid direct sunlight.
Q3 : What about the maintaince for the scoreboard ?
2 Years Warranty .
Under the condition of not artificial damage, we will send you the
new parts to replace.
