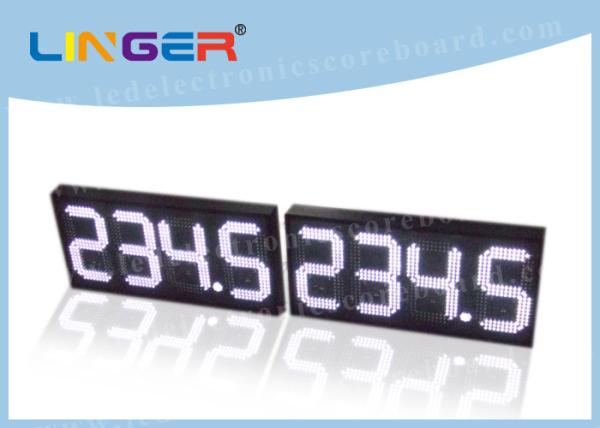

Super Brightness 12inch digits in White Color LED Gas Price Sign
for double sides 3 Lines
PRODUCT PARAMETER |
| Format : | 888.8 | Color : | White |
| Display Size : | 500mm x 1000mm | Thickness : | 100mm |
| Digit Size : | 12'' 300mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Gas Price Sign Descripition
Specification :
1) Use of the environment: Outdoor Gas Station / Service Station
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' /
20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame
,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box /
Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v
~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 560mm x 1070mm x 160mm ( Carton )
Other Standard Dimensions Option
| Model | Gas Price Sign Size | Package Dimension |
| 8'' 200mm | 300mm x 630mm x 100mm | 360mm x 700mm x 160mm |
| 10'' 254mm | 450mm x 950mm x 100mm | 520mm x 1020mm x 160mm |
| 12'' 300mm | 500mm x 1000mm x 100mm | 560mm x 1070mm x 160mm |
| 16'' 400mm | 750mm x 1550mm x 100mm | 820mm x 1620mm x 170mm |
| 20'' 500mm | 800mm x 1600mm x 100mm | 860mm x 1670mm x 170mm |
| 24'' 600mm | 900mm x 2000mm x 100mm | 970mm x 2070mm x 170mm |
| 30'' 750mm | 1150mm x 2400mm x 100mm | 1220mm x 2470mm x 170mm |
About Sample
1. Existing samples can be provided but not for free of charge. 2. Customized size and layout design are welcome.
3. Sample will be finished about one week.
4. Photos for sample will be sent to confirm befor the shippment.
5. Good after-sale service - any quality problem , we will do our
best to help solve the problem.
6. Large size sample will shipped by air or sea . Sample with small
size and light will send by express.
Trade Terms
1. Do you accept OEM & ODM order?
Yes! We can produce products according to customers’ design and
samples.
2. What is MOQ?
MOQ can be 1unit.
3. How about the payment terms?
T/T ,Western Union,Paypal in advance .
4. Can I get samples from you?
Yes! Sample could be supplied. But it is not free.
5. What is the warranty?
It is 2 years.
6. What about the price level?
As a professional manufacturer who have been Specializing in the
production of led scoreboard,led gas
price sign,led message sign,led disply for more than 15years, we
are sure that our prices have a great
competitive advantage over the products at the same level.
Product Testing and Aging Steps
1. Test the Leds Chrominance and Angle in darkroom
(Using Equipment : Light Source Analysis System)
2. Test the Temperature and Humidity
(Using Equipment : High – Low Temp. & Variation Chamber)
3. Test the Seismic Performance
(Using Equipment : Transportation Vibration Testing Machine)
4.Test the waterproofing performance and long-term ponding water.
(Using Equipment : Splash Water Test Equipment )
5. Passed all above Testing ,product will be aging at least for
72Hours.
(Aging Method : Light the all leds and to be Flashing )
