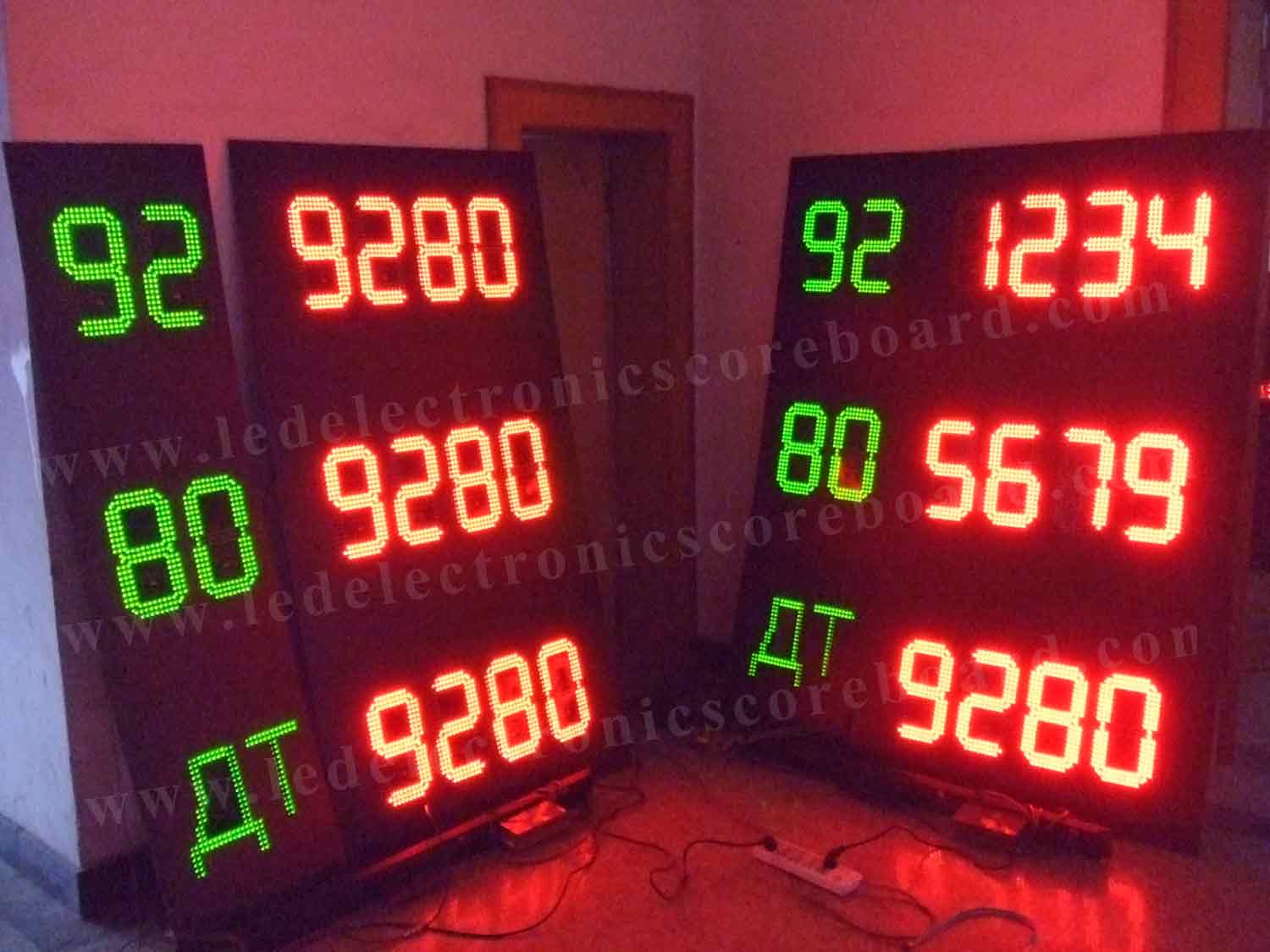

Several Lines with One Remote Controller LED Gas Price Sign for
Gasoline Stataion
PRODUCT PARAMETER |
| Format : | 8888 with Name | Color : | Red and Green |
| Display Size : | 500mm x 1000mm | Thickness : | 100mm |
| Digit Size : | 12'' 300mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Gas Price Sign Descripition
Specification :
1) Use of the environment: Outdoor Gas Station / Service Station
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' /
20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame
,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box /
Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v
~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 650mm x 1070mm x 160mm ( Carton )
Other Standard Dimensions Option
| Model | Gas Price Sign Size | Package Dimension |
| 8'' 200mm | 300mm x 630mm x 100mm | 360mm x 700mm x 160mm |
| 10'' 254mm | 500mm x 950mm x 100mm | 560mm x 1020mm x 160mm |
| 12'' 300mm | 580mm x 1000mm x 100mm | 650mm x 1070mm x 160mm |
| 16'' 400mm | 750mm x 1550mm x 100mm | 820mm x 1620mm x 170mm |
| 20'' 500mm | 800mm x 1600mm x 100mm | 860mm x 1670mm x 170mm |
| 24'' 600mm | 900mm x 2000mm x 100mm | 970mm x 2070mm x 170mm |
| 30'' 750mm | 1150mm x 2400mm x 100mm | 1220mm x 2470mm x 170mm |
Trade Terms
1. Do you accept OEM & ODM order?
Yes! We can produce products according to customers’ design and
samples.
2. What is MOQ?
MOQ can be 1unit.
3. How about the payment terms?
T/T ,Western Union,Paypal in advance .
4. Can I get samples from you?
Yes! Sample could be supplied. But it is not free.
5. What is the warranty?
It is 2 years.
6. What about the price level?
As a professional manufacturer who have been Specializing in the
production of led scoreboard,led gas
price sign,led message sign,led disply for more than 15years, we
are sure that our prices have a great
competitive advantage over the products at the same level.
Usual Questions
Q1: What should I do if my Scoreboard is not working properly?
Check the Input Power is with right Volatge. Some countries use
110V and Some Countried use 220V.
If the controller box is without Battery. That must be a power
cable to connect to 110V / 220V plug.
Any other problem can contact with us and take photos for us to
check .
Q2: What is the correct way to store the scoreboard ?
1. Keep out of the reach of children under 8 years.
2. Do not store in dampness and high temperature places.
3. Avoid direct sunlight.
Q3 : What about the maintaince for the scoreboard ?
2 Years Warranty .
Under the condition of not artificial damage, we will send you the
new parts to replace.
