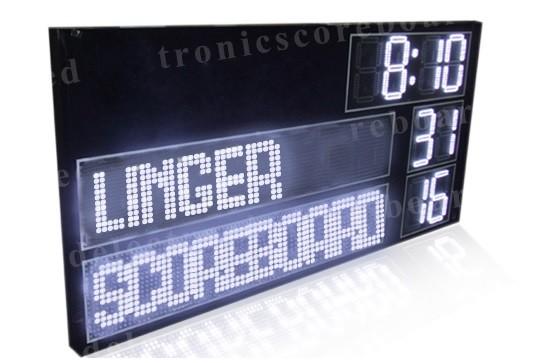

P16mm White Color Team Name LED Football Scoreboard with White
Color Digits
| PRODUCT INFORMATION |
| Model No. : | LG-LFS8D300W-VTN |
| Dight Height and Color : | 12'' 300mm Height in White Color |
| Display Dimension : | 3.9 ft x 6.6 ft x 4inch ( 1200mm x 2000mm x 100mm ) |
| Team Name Height and Color : | Pitch16mm In White Color |
| Team Name Size : | 256mm x 1280mm x 2 Names |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 400m |
| Application : | Football Game |
| Frame Color : | Black / other Colors |
| Weight : | 60kgs |
| Waterproof : | Outdoor Type |
Scoreboard Descripition
Function : Football Mode and Cricket Mode Information
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 12'' 300mm
4) Display Led Color : White (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage:
8 Pieces digits , 12 inch character in White Color
20 Pieces led modules , Pitch16mm in White Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1270mm x 2070mm x 160mm ( Wooden Case ) / 300kgs
Screen Dimension : 3.9 ' x 6.6 ' x 4''
Function Descripition
TIME : GAME TIME / DAY TIME - 4 digits display Hours : Minutes or
Minutes : Seconds
SCORES : Display number for 00 - 99 , 2 Digits for each team
Team Name : Display Letter for A - Z ,Each name display Max 10 pcs
of Letters
Siren : Include . When time is reach to 00 :00 , it will sound for
5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
FAQ
Q1. What is your payment ?
A : We accept T/T , Wester Union , Paypal.
Q2. When can you arrange the shipment after i have placed an order
?
A : Usually about 10days after receiving Payment.
Q3. Can you accept customized ?
YES.Welcome!
Q4. Is it OK to print my logo on the product?
A : Yes. Please inform us formally before our production and
confirm.
Installation Method
For Indoor Scoreboard :
1) Bracket / Bracket with wheels
2) Hanging with Hooks and it is dangly
3) Hanging on the Wall and it is fixed on wall
4) Hanging on the pillar with anchor ear
For Outdoor Scoreboard:
1) Portal Frame
2) Hanging on the Wall and it must be fixed
3) Hanging on the pillar with anchor ear
4) Bracket / Bracket with wheels ( Only for small size )
5) Hanging into Wall and Fixed
Attention Matters:
Dissipate Heat and Drainage - Inform us the installation method in
advance ,we will make
right method on scoreboard.
Maintenance - Easy to do maintance from front or back side .
Stable and stronger Method - Weatherproof
