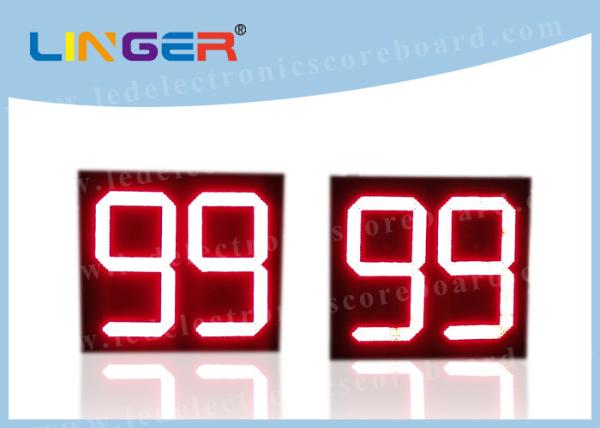

20inch Red Color Countdown Shot Clock LED Countdown Timer for
Basketball Scoreboard
PRODUCT PARAMETER |
| Format : | 88 | Color : | Red |
| Display Size : | 690mm x 760mm | Thickness : | 100mm |
| Digit Size : | 20'' 500mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Dimensions / Function
Dimension:
| Model | Timer Size | Package Dimension |
| 8'' 200mm | 300mm x 350mm x 100mm | 370mm x 420mm x 170mm |
| 10'' 254mm | 350mm x 410mm x 100mm | 420mm x 480mm x 170mm |
| 12'' 300mm | 370mm x 550mm x 100mm | 440mm x 620mm x 170mm |
| 16'' 400mm | 610mm x 690mm x 100mm | 680mm x 760mm x 170mm |
| 20'' 500mm | 690mm x 760mm x 100mm | 760mm x 830mm x 170mm |
| 24'' 600mm | 770mm x 900mm x 100mm | 840mm x 970mm x 170mm |
| 30'' 750mm | 920mm x 910mm x 100mm | 990mm x 980mm x 170mm |
Timer Function:
1.Display : Seconds
2.Count up : Count from zero to 99 seconds
3.Countdown : Count from 99 seconds to zero
4.Interval timer: interval repeating countdown/ count up timer, max
99 Seconds
Available Option:
* Timer can work by Battery .
Timer Descripition
Specification :
1) Use of the environment: Outdoor and Indoor
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' /
20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame
,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box /
Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v
~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Tripod / With wheels / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 760mm x 830mm x 170mm
About Sample
1. Existing samples can be provided but not for free of charge. 2. Customized size and layout design are welcome.
3. Sample will be finished about one week.
4. Photos for sample will be sent to confirm befor the shippment.
5. Good after-sale service - any quality problem , we will do our
best to help solve the problem.
6. Large size sample will shipped by air or sea . Sample with small
size and light will send by express.
