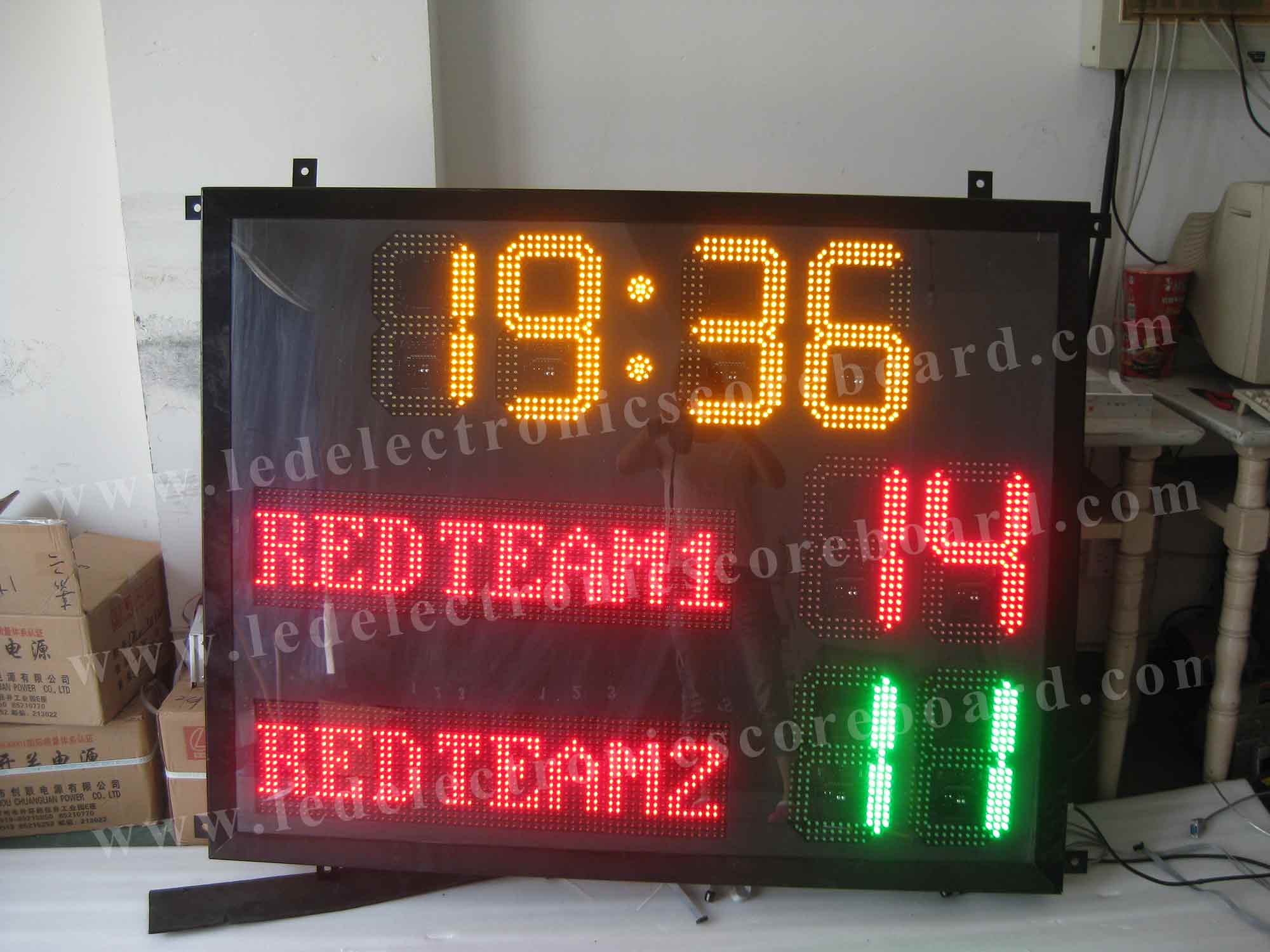

Electronic Team name in red Color Led Electronic Scoreboard for
Sports Club
| PRODUCT INFORMATION |
| Model No. : | LG - ES8D300RGY-VTN |
| Dight Height and Color : | 12'' 300mm Height in Red and Yellow and Green Color |
| Display Dimension : | 3.9 ft x 4.6 ft x 4inch ( 1200mm x 1400mm x 100mm ) |
| Team Name Type and Color : | Pitch12mm Modules in Red Color |
| Team Name Size : | 192mm x 768mm x 2 Names |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 350m |
| Application : | Rugby and Multi - Sports |
| Frame Color : | Black / other Colors |
| Printed Letters | Sticker in White Color for Any letters |
| Weight : | 25kgs |
| Waterproof : | Outdoor Type |
Scoreboard Descripition
Function : Used for Multi - Sport and display GAME TIME, 2 Teams SCORES ,
TEAM NAMES
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 12'' 300mm
4) Display Led Color : Red / Green / Yellow (Any other kind is
Option)
5) Frame Color : Black Color (Any other kind is Option)
6) Team Name : Pitch12mm Led Modules in Red Color
Overall Structure :
1) Display usage:
11 Pieces digits , 12 inch character in 3 Colors
16 Pieces Led Modules , Pitch12mm in Red Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1270mm x 1470mm x 160mm (Carton / Wooden Case )
Screen Dimension : 3.9 ' x 4.6 ' x 4''
Function Descripition
TIME : GAME TIME / DAY TIME - 4 digits display Hours : Minutes or
Minutes : Seconds
SCORES : Display number for 00 - 99 , 2 Digits for each team
Team Name : Display Letter for A - Z ,Each name display Max 8 pcs
of Letters
Siren : Include . When time is reach to 00 :00 , it will sound for
5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
Advantage
1. We manufactured Led Product over 10 Years.Rich experience with
excellent staff, first-class production
environment ,rigorous and efficient enterprise management system.
2. Customized Design Product is welcome.And MOQ can be 1 Unit.We
will provide the competition price
for Various Led Products.
3. The company has a variety of test equipment to control product
quality like “Light Source Analysis
System”, “High – Low Temp & Variation Chamber”, “Transportation
Vibration Testing Machine”, “Splash
Water Test Equipment” .
4. Flexible Payment – Wire Transfer (T/T), Wester Union, Paypal .
5. Products all certificated, all our products have passed all
test, certification can be provided if you need.
Cautions when using Scoreboard
1. Confirm the Scoreboard Input Power is 110V or 220V .110V input
power are unable to use by 220V
power socket.
2. Controller box is not waterproof, please avoid to touch the
water.
3. Don’t change any electronic part if there is no any professional
technician.
4. Not for Children under 12Years.
5. Stored in a dry environment, avoid direct sunlight.
6. Avoid heavy objects hit the front galss board.
Our Services
1.Superior Quality
Our Quality Control team ensures that nothing gets put in stock
which is not of the highest quality standard. We inspect all
incoming goods before they are put on the warehouse shelves.After
all Componets and other electronic parts are finished,they will
arrange to test over 72hours. We finish to install all componets
together,the completely product will be tested by a variety of test
equipments.
2. Faster Response/Delivery
Customer service available on working time (8 : 30 – 17 : 30) from
Monday to Saturday.Orders / Sample sent by courier, such as DHL,
UPS and FedEx, arrive at your doorstep within an average of 3 - 4
days. 5 - 7days to finish air shipment. 2 - 4weeks to finish the
sea shipment. Shipments are insured for successful delivery and
tractable online.
3. Professional, Value for Money
We are directly manufacturer, contact us to order products directly
from us, you can get the best price, must be lower than others who
orders from trading company. The most competitive price is here for
you, of course, good quality also.
4.After Service
We have a lot of experienced hardware engineers, software
programmers will check the feedback from our Customer and found the
solution reply to Customer with drawing or video.If there is no any
technicians can help you at your side, we will explain and teach
you through TeamViewer.
