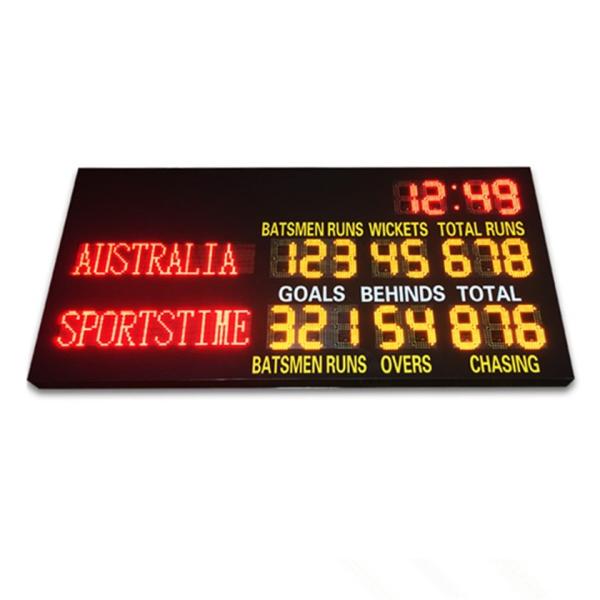

AFL Australia Sport Rule With LED Team Name Led Electronic
Scoreboard in Yellow Color
| PRODUCT INFORMATION |
| Model No. : | LG-AFL18D300GY-VTN |
| Dight Height and Color : | 12'' 300mm Height in Green Color |
| Display Dimension : | 3.9 ft x 11.8 ft x 4inch ( 1200mm x 3600mm x 100mm ) |
| Team Name Height and Color : | Pitch12mm In Yellow Color |
| Team Name Size : | 288mm x 1920mm x 2 names |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 450m |
| Application : | AFL (Football Sport and Cricket Sport ) |
| Frame Color : | Black / other Colors |
| Printed Letters | Sticker in White Color for Any letters |
| Weight : | 140kgs |
| Waterproof : | Outdoor Type |
AFL Scoreboard Descripition
Function : Football Mode and Cricket Mode Information
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 12'' 300mm
4) Display Led Color : Green (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
6) Team Name : Pitch12mm Led Module in Yellow Color
Overall Structure :
1) Display usage:
18 Pieces digits , 12 inch character in Green Color
60 Pieces led modules ,Pitch12mm in Yellow Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1270mm x 3670mm x 160mm ( Wooden Case ) / 300kgs
Screen Dimension : 3.9 ' x 11.8 ' x 4''
AFL Function Descripition
AFL Scoreboard with 2 Modes : Football (Aussie) Mode and Cricket
Mode
TIME : Minutes / Seconds for Football Mode , Hours : Minutes for
Cricket Mode - 4 Digits to display
Footbal Mode Mode :
GOAL - 2 Digits Display score number 00 - 99 ( GOAL + 1 = TOTAL + 6
)
BEHINDS - 2 Digits Display score number 00 - 99 ( BEHINDS + 1 =
TOTAL + 1)
TOTAL - 3 Digits display score number 000 - 999
Cricket Mode Mode :
BATSMEN RUNS - 3 Digits display number 000 - 999
WICKETS - 2 Digits display number 00 - 99
OVERS - 2 Digits display number 00 - 99
BATEMAN TOTAL - 3 Digits display number 000 - 999
CHASING - 3 Digits display number 000 - 999
Team Name : Sticker in White Color (Customized)
Siren : Include . When time is reach to 00 :00 , it will sound for
5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
Trade Terms
1. Do you accept OEM & ODM order?
Yes! We can produce products according to customers’ design and
samples.
2. What is MOQ?
MOQ can be 1unit.
3. How about the payment terms?
T/T ,Western Union,Paypal in advance .
4. Can I get samples from you?
Yes! Sample could be supplied. But it is not free.
5. What is the warranty?
It is 2 years.
6. What about the price level?
As a professional manufacturer who have been Specializing in the
production of led scoreboard,led gas
price sign,led message sign,led disply for more than 15years, we
are sure that our prices have a great
competitive advantage over the products at the same level.
Product Testing and Aging Steps
1. Test the Leds Chrominance and Angle in darkroom
( Using Equipment : Light Source Analysis System)
2. Test the Temperature and Humidity
(Using Equipment : High – Low Temp. & Variation Chamber)
3. Test the Seismic Performance
(Using Equipment : Transportation Vibration Testing Machine)
4.Test the waterproofing performance and long-term ponding water.
(Using Equipment : Splash Water Test Equipment )
5. Passed all above Testing ,product will be aging at least for
72Hours.
(Aging Method : Light the all leds and to be Flashing )
