8'' inch 200mm Digits in Red Color Led Electronic Scoreboard for
WaterPolo Sports
| PRODUCT INFORMATION |
| Model No. : | LG-EWS8D200R-SC |
| Dight Height and Color : | 8'' 200mm Height in RED Color |
| Display Dimension : | 3 ft x 4.6 ft x 4inch ( 900mm x 1400mm x 100mm ) |
| Shot Clock Height and Color : | 8'' 200mm Height in RED Color |
| Shot Clock Size : | 300mm x 350mm x 2 Pieces |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 200m |
| Application : | Waterpolo Sports |
| Frame Color : | Black / other Colors |
| Weight : | 30kgs |
| Waterproof : | Outdoor Type |
Waterpolo Scoreboard Descripition
Function : Used for Waterpolo Sport
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 8'' 200mm
4) Display Led Color : RED Color (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage:
12 Pieces digits , 8 inch character in RED Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 970mm x 1470mm x 160mm ( Carton ) / 50kgs
Screen Dimension : 3 ' x 4.6 ' x 4''
Function Descripition

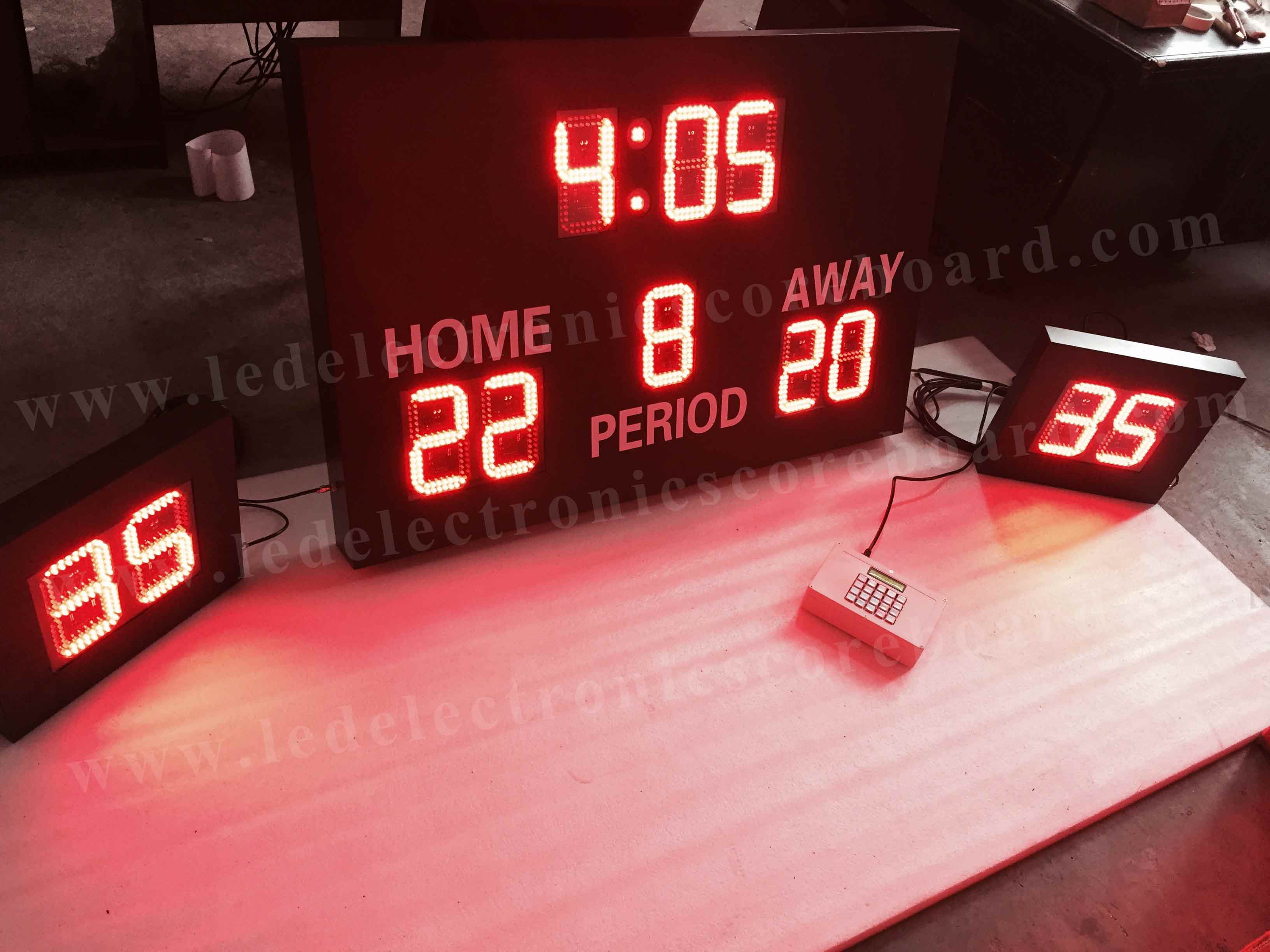

Waterpolo Scoreboard with a pair of low voltage pool side shot clocks ,function see below :
GAME TIME : Countdown Game Clock - 4 Digits display Minutes :
Seconds
SCORES : HOME & AWAY - 2 Digits for each team show 00 - 99
PERIOD : Indicator - 1 Digit show Number 0 - 9
TIME OUT : 2Lights for each side - ON / OFF
SHOT CLOCK : Countdown Second - 2 Digits show number from 99 - 00
Siren : Include . When time is reach to 00 :00 , it will sound for
5 ''
Led Brightness Adjustment : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
Advantage
1. We manufactured Led Product over 10 Years.Rich experience with
excellent staff, first-class production
environment ,rigorous and efficient enterprise management system.
2. Customized Design Product is welcome.And MOQ can be 1 Unit.We
will provide the competition price
for Various Led Products.
3. The company has a variety of test equipment to control product
quality like “Light Source Analysis
System”, “High – Low Temp & Variation Chamber”, “Transportation
Vibration Testing Machine”, “Splash
Water Test Equipment” .
4. Flexible Payment – Wire Transfer (T/T), Wester Union, Paypal .
5. Products all certificated, all our products have passed all
test, certification can be provided if you need.
FAQ
Q1. What is your payment ?
A : We accept T/T , Wester Union , Paypal.
Q2. When can you arrange the shipment after i have placed an order
?
A : Usually about 10days after receiving Payment.
Q3. Can you accept customized ?
YES.Welcome!
Q4. Is it OK to print my logo on the product?
A : Yes. Please inform us formally before our production and
confirm
Product Testing and Aging Steps
1. Test the Leds Chrominance and Angle in darkroom
( Using Equipment : Light Source Analysis System)
2. Test the Temperature and Humidity
(Using Equipment : High – Low Temp. & Variation Chamber)
3. Test the Seismic Performance
(Using Equipment : Transportation Vibration Testing Machine)
4.Test the waterproofing performance and long-term ponding water.
(Using Equipment : Splash Water Test Equipment )
5. Passed all above Testing ,product will be aging at least for
72Hours.
(Aging Method : Light the all leds and to be Flashing )
