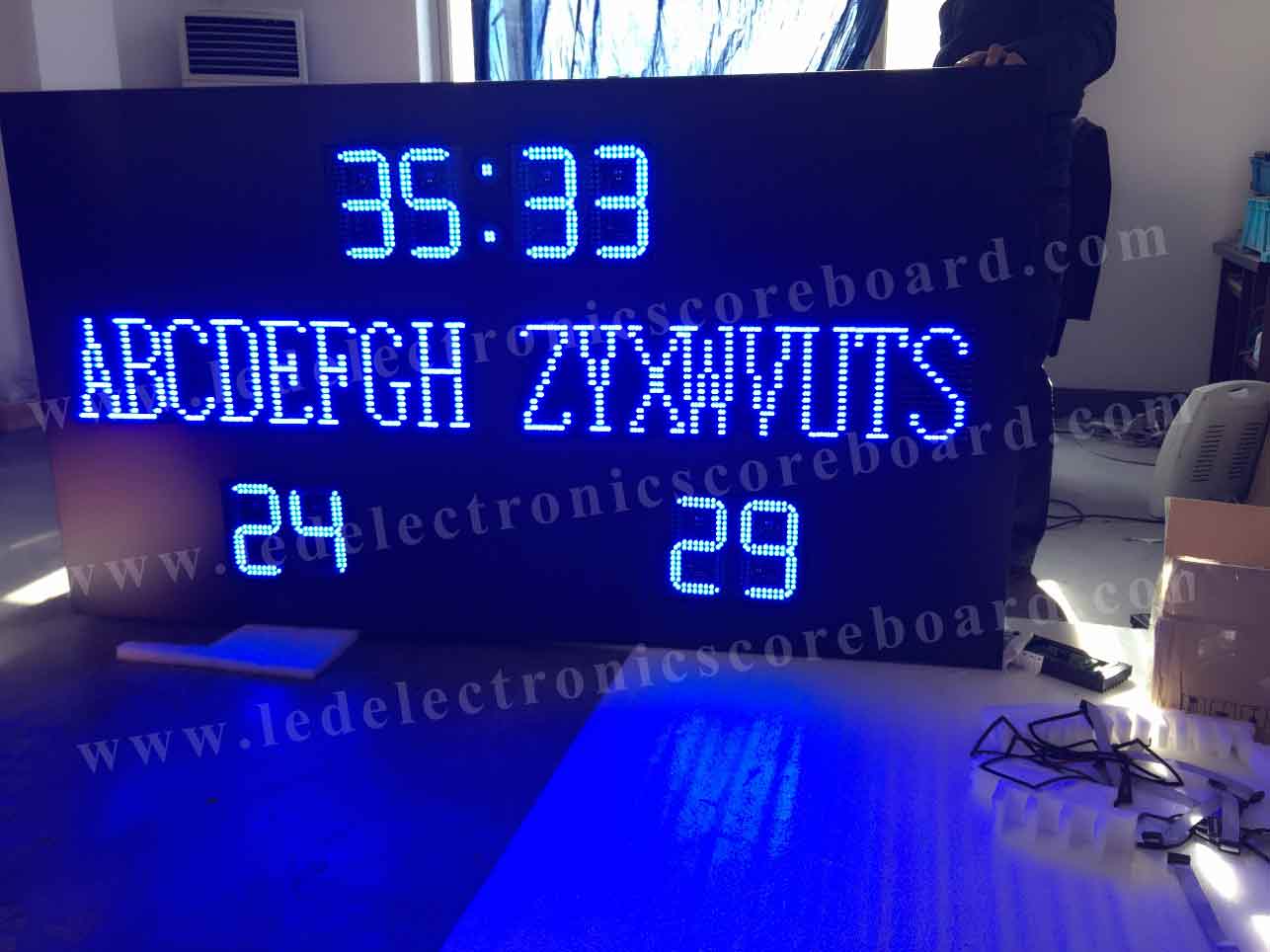

P12mm Pixel Modules for Team Name Led Electronic Scoreboard in Blue
Color
| PRODUCT INFORMATION |
| Item No. : | LG-LFS200B-8D-VTN |
| Dight Height and Color : | 8'' 200mm Height in Blue Color |
| Scoreboard Dimension : | 3.3ft x 5.9ft (1000mm*1800mm*90mm) |
| Team Name Height and Color: | P12mm Module in Blue Color |
| Team Name Size : | 192mm x 768mm x 2 Names |
| Controller Type : | PVC Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 200m |
| Application : | Multi - Sports |
| Work Temperature : | -20℃ ~ 60℃ |
| Humidity : | 0% - 95% |
Description
Function : Used for Multi - Sport and display GAME TIME,TEAM NAME, 2 Teams
SCORE
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 8'' 200mm
4) Display Led Color : Blue (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage: 8 Pieces digits , 8 inch character in Blue Color
16 Pieces Module ,P12mm in Blue Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1070mm x 1870mm x 160mm (Carton)
Screen Dimension : 3.3 ' x 5.9 ' x 4''
Function
Scoreboard can used for Multi - Sports . The digit height is 200mm
and in Blue Color.
Controller Box is PVC material with buttons. Install Wireless
Module and operation Distance is 1m ~ 800m.
1) GAME TIME : 4Digits - MM : SS -00 : 00 ~ 99 : 59
2) TEAM 1 : 2Digits - 00 ~ 99
3) TEAM 2 : 2Digits - 00 ~ 99
4) TEAM NAME : Pitch12mm Blue Modules , Max 8 Letters for each team
name.
5) GAME TIME Type : Countdown / Count up
6) With Siren. When the time to be 00 : 00 or reach to Setup Time,
the siren will sound for 5 Seconds.
7) Team Name : Enter A - Z letter by Controller Buttons
About the Scoreboard function ,it is customized . Any request is
welcome.
Packaging & Delivery
Packaging Details :
Air and Express Shipment Packaging : Carton
Sea Shipment Packaging : Wood Case (Free)
OEM Packaging : Customized . Warmly welcome to contact us to talk
more detail.
Delivery Details :
Order Quantity 1Unit ~ 20Units : 7days ~ 10days.
Order Quantity 21Unit ~ 50Units : 10days ~ 15days.
Order Quantity > 50Units : 15days ~ 20days.
Sea Shipment need 25days to arrive.
Air and Express Shipment need 3-5days to arrive.
Installation Method
For Indoor Scoreboard :
1) Bracket / Bracket with wheels
2) Hanging with Hooks and it is dangly
3) Hanging on the Wall and it is fixed on wall
4) Hanging on the pillar with anchor ear
For Outdoor Scoreboard:
1) Portal Frame
2) Hanging on the Wall and it must be fixed
3) Hanging on the pillar with anchor ear
4) Bracket / Bracket with wheels ( Only for small size )
5) Hanging into Wall and Fixed
Attention Matters:
Dissipate Heat and Drainage – Inform us the installation method in
advance ,we will make
right method on scoreboard.
Maintenance – Easy to do maintance from front or back side .
Stable and stronger Method – Weatherproof
