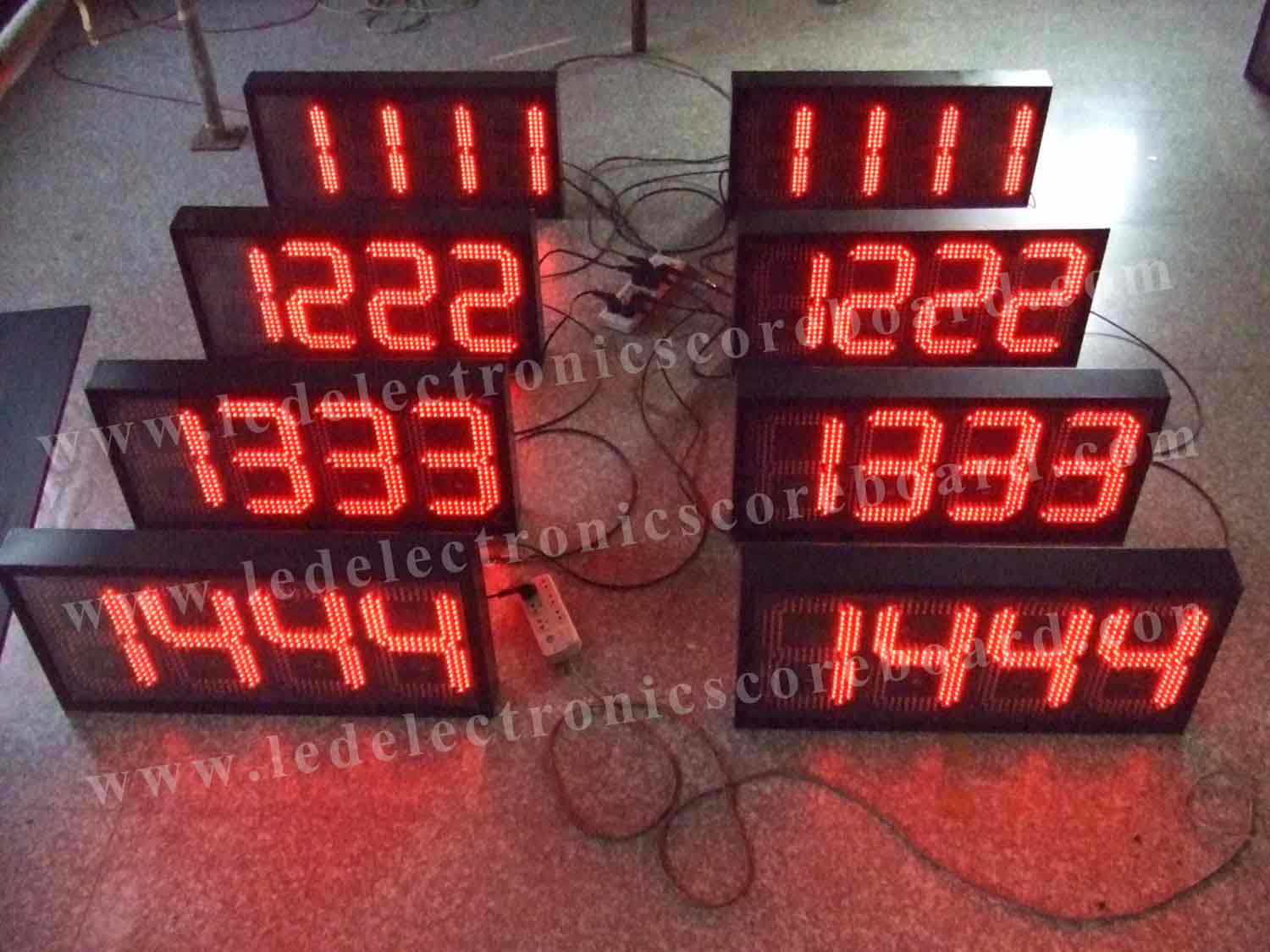

Regular Red Color Semi - Outdoor Electronic Digital Gas Price Signs
PRODUCT PARAMETER |
| Format : | 8888 | Color : | Red |
| Display Size : | 500mm x 1000mm | Thickness : | 100mm |
| Digit Size : | 12'' 300mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Gas Price Sign Descripition
Specification :
1) Use of the environment: Outdoor Gas Station / Service Station
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' /
20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame
,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box /
Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v
~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 650mm x 1070mm x 160mm ( Carton )
Other Standard Dimensions Option
| Model | Gas Price Sign Size | Package Dimension |
| 8'' 200mm | 300mm x 630mm x 100mm | 360mm x 700mm x 160mm |
| 10'' 254mm | 500mm x 950mm x 100mm | 560mm x 1020mm x 160mm |
| 12'' 300mm | 580mm x 1000mm x 100mm | 650mm x 1070mm x 160mm |
| 16'' 400mm | 750mm x 1550mm x 100mm | 820mm x 1620mm x 170mm |
| 20'' 500mm | 800mm x 1600mm x 100mm | 860mm x 1670mm x 170mm |
| 24'' 600mm | 900mm x 2000mm x 100mm | 970mm x 2070mm x 170mm |
| 30'' 750mm | 1150mm x 2400mm x 100mm | 1220mm x 2470mm x 170mm |
