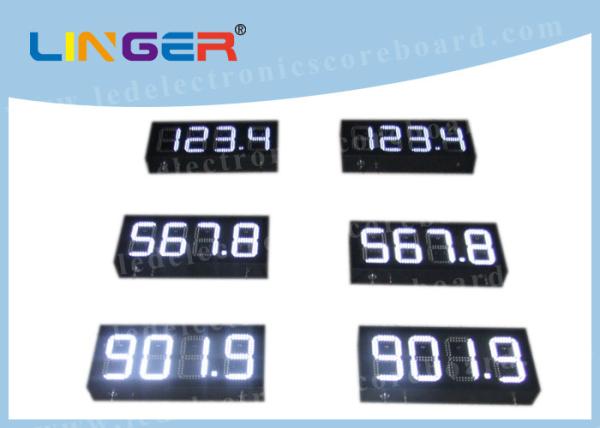

Electronic Price Board for Oil Sation and Led Digital Gas Price
Signs
PRODUCT PARAMETER |
| Format : | 888.8 | Color : | White |
| Display Size : | 300mm x 630mm | Thickness : | 100mm |
| Digit Size : | 8'' 200mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 5000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Gas Price Sign Descripition
Specification :
1) Use of the environment: Outdoor Gas Station / Service Station
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' /
20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame
,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box /
Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v
~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 360mm x 700mm x 160mm ( Carton )
Other Standard Dimensions Option
| Model | Gas Price Sign Size | Package Dimension |
| 8'' 200mm | 300mm x 630mm x 100mm | 360mm x 700mm x 160mm |
| 10'' 254mm | 450mm x 950mm x 100mm | 520mm x 1020mm x 160mm |
| 12'' 300mm | 500mm x 1000mm x 100mm | 560mm x 1070mm x 160mm |
| 16'' 400mm | 750mm x 1550mm x 100mm | 820mm x 1620mm x 170mm |
| 20'' 500mm | 800mm x 1600mm x 100mm | 860mm x 1670mm x 170mm |
| 24'' 600mm | 900mm x 2000mm x 100mm | 970mm x 2070mm x 170mm |
| 30'' 750mm | 1150mm x 2400mm x 100mm | 1220mm x 2470mm x 170mm |
Features
1. Linger devote to design the different sports of customized
scoreboard, any kind of digit height and digit color is made for
different scoreboard.
2. Scoreboard controller type can be with cable or wireless type.
3. The brightness is enough for outside in day and night.
4. Scoreboard with Iron waterproof cabinet and prevent the impact.
5. The front face is acrylic glass board to protect digits and the
acrylic glass board is UV Protection type.
About Sample
1. Existing samples can be provided but not for free of charge. 2. Customized size and layout design are welcome.
3. Sample will be finished about one week.
4. Photos for sample will be sent to confirm befor the shippment.
5. Good after-sale service - any quality problem , we will do our
best to help solve the problem.
6. Large size sample will shipped by air or sea . Sample with small
size and light will send by express.
FAQ
Are you a manufacture?
A : Yes, we are a manufacture with rich experience.
Can I visit your factory ?
A : Welcome ! The nearest air port is Shanghai Pudong International
Airport.
How does your factory do Quality Control?
A : Quality is 1st priority. We always attach great importance to
quality controlling from
raw material suppliers. We have professional QC team to inspect the
products.
Can you add my own LOGO on the product?
A : Yes, customized logo are welcome. OEM and ODM is OK for us.
Can we use our own shipping agent?
A : Yes, you can. We had cooperated with many forwarders. If you
need ,we can
recommend some forwarders to you and you can compare the price and
services.
