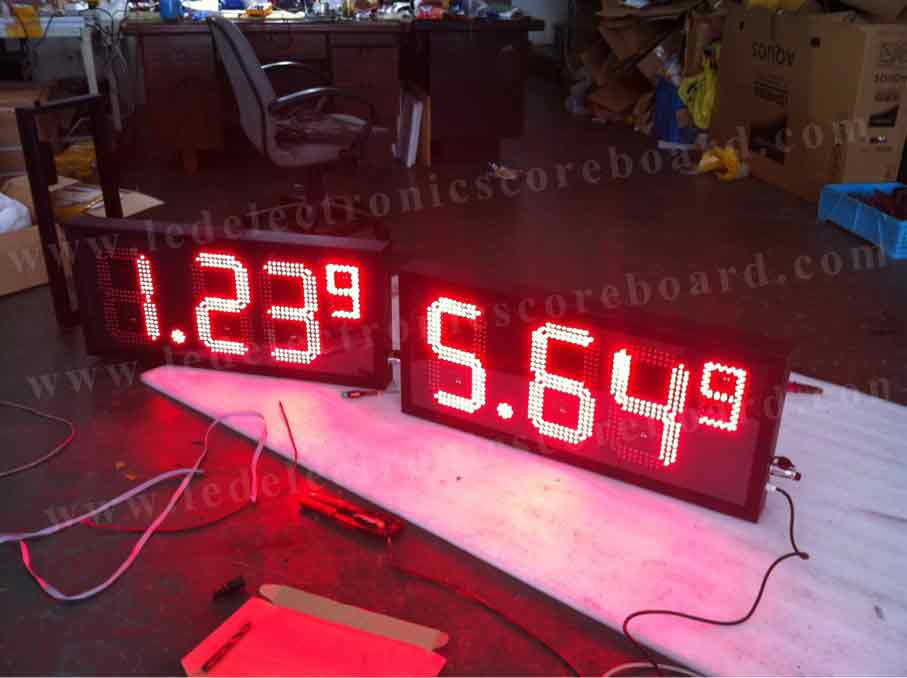

Red Color 8.889 Led Digital Gas Price Signs for Gas Station
PRODUCT PARAMETER |
| Format : | 8.88 with small 8 | Color : | Red |
| Display Size : | 400mm x 900mm | Thickness : | 100mm |
| Digit Size : | 12'' 300mm , 6'' 150mm | Housing : | Iron Cabinet |
| Communication1 : | IR Remote | Communication Distance : | IR = 10M |
| Communication2 : | Wire | Communication Distance : | RS232 = 50M |
| Communication3 : | Wireless | Communication Distance : | RF433 =1000M |
| Output Voltage : | 5V | Volatge Input : | 110V ~ 240V AC |
| Brightness : | 4000cd / M2 | Working Temp : | -30℃ ~ +65℃ |
| Viewing Angle : | > 100° | Working Humidity : | 5% - 90% RH |
| Life Span : | 100,000 Hours | Waterproof : | IP65 |
Gas Price Sign Descripition
Specification :
1) Use of the environment: Outdoor Gas Station / Service Station
2) Brightness: High Level Brightness
3) Height of Number Option : 6'' / 8'' / 10'' / 12'' / 16'' /
20'' / 24'' / 30'' ect.
4) Number Color Option : Red / Green / Amber / Blue / White
5) Frame Color : Black Color (Any other kind is Option
Overall Structure :
1) Display Sign Include : Numbers ,Controller , Cabinet / Frame
,Power Supply
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,5% ~ 90% relative humidity
Operation Type :
1) Controller Type : IR Remote / PVC Buttons Controller Box /
Windows Software
2) Communication Type : IR / Hard - wire / Wireless Type
3) Operation Distance : 10m ~ 1200m.
4) Operation Power : Remote with Battery / Controller Box with 110v
~ 240v Power
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 470mm x 970mm x 160mm ( Carton )
Other Standard Dimensions Option
| Model | Gas Price Sign Size | Package Dimension |
| 8'' 200mm | 300mm x 630mm x 100mm | 360mm x 700mm x 160mm |
| 10'' 254mm | 350mm x 750mm x 100mm | 410mm x 820mm x 160mm |
| 12'' 300mm | 400mm x 1000mm x 100mm | 460mm x 1070mm x 160mm |
| 16'' 400mm | 580mm x 1500mm x 100mm | 650mm x 1570mm x 170mm |
| 20'' 500mm | 650mm x 1400mm x 100mm | 720mm x 1470mm x 170mm |
| 24'' 600mm | 700mm x 1650mm x 100mm | 770mm x 1720mm x 170mm |
| 30'' 750mm | 850mm x 2000mm x 100mm | 920mm x 2070mm x 170mm |
Scoreboard Design Details
1. To finish the scoreboard Layout drawing, or can send us the
photo of the scoreboard you need to
produce.
2. On the website we display a lot of Sport Scoreboards for
different games.To Select the similar
scoreboard picture and send us your idea or changes for this one.
3. After we talking about the all design details and changes ,new
confirmed scoreboard layout will be send
to confirm.
4. For the scoreboard size and Color ,the digit height and color
,all are negotiated.
5. To plus or reduce the digit on the scoreboard,make different
color in one scoreboard,make different
color for cabinet , print Logo on the scoreboard ,all requests are
available in the layout drawing.
Purchase Process
1. Inquiry-Professional quotation by email or telephone. 2. Confirm
the price, lead time, artwork, payment term etc. 3. Send the
Performa Invoice. 4. Customer makes the payment and sends us Bank
receipt. 5. Initial Production Stage-Inform the clients that we
have got the payment, And will make the samples according to your
request, send you photos or Samples to get your approval. After
approval, we inform that we will arrange the production & inform
the estimated time. 6. Middle Production-send photos to show the
production line which you can see your products in . Confirm the
estimated delivery time again. 7. End Production-Mass production
products photos and samples will send to you for approval. You can
also arrange the third party inspection if you need. 8. Finish the
balance payment if the order has .Book the flight or vessel and
ship the goods. Inform the tracking number or send the Documents
for Customer to do Customs Clearance. 9. Order can be say “finish”
when you receive the goods and satisfy with them. 10. Feedback to
us about Quality, Service, Market Feedback & Suggestion. And we can
do better.
