Long View Distance with Wireless Controller Led Electronic
Scoreboard For Outside Tennis
| PRODUCT INFORMATION |
| Model No. : | LG-LTS-200R-VTN |
| Dight Height and Color : | 12'' 300mm Height in Red Color |
Display Dimension : | 5.2 ft x 5.2 ft x 4inch ( 1600mm x 1600mm x 100mm ) x 1 |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 250m |
| Application : | Tennis Sport |
| Frame Color : | BLACK Color / other Colors |
| Led Letters | for Any letters |
| Weight : | 40kgs |
| Waterproof : | Outdoor Type |
Tennis Scoreboard Descripition
Function : Used for Tennis Sport and display GAME TIME,SCORES ,
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 12'' 300mm Digits
4) Display Led Color : Red (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage: 21 Pieces digits , 12 inch character in Red
Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
6) Cabinet Size : 1200mm x 2000mm x 120mm
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1670mm x 1670mm x 160mm (Carton / Wooden Case )
Screen Dimension : 5.2 ' x 5.2 ' x 4''
Tennis Function Descripition

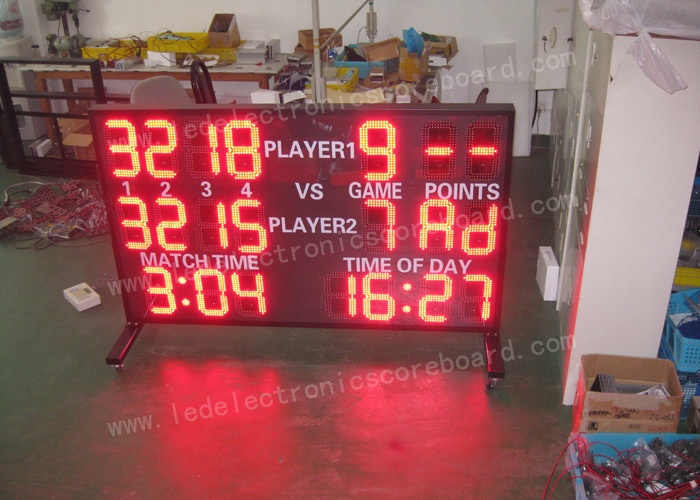

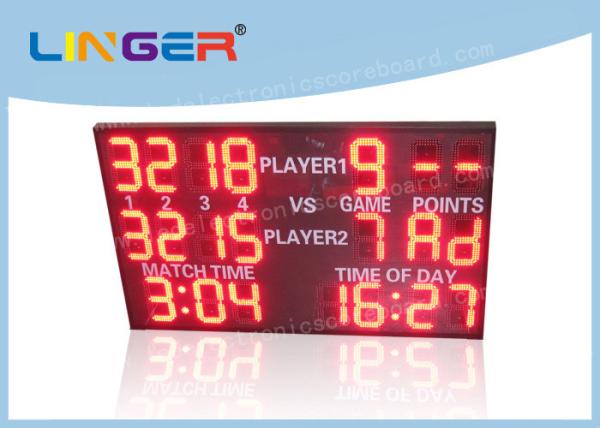

Tennis Scoreboard :
GAME TIME : Minutes / Seconds - 4Digits can be set to count down from any time
Clock Time : Minutes / Seconds - 4Digits to Display Day Time
SCORE : 1 -4 Digits to display 0 - 9
GAME : 1 Digit to Display 0 - 9
POINT : 2 Digits to Display 00 - 99
TEAM NAME : Enter Letters with Controller Buttons for A - Z
Siren : Internal siren with external siren ,When time is reach to 00 :00 , it will sound for 5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
Advantage
1. We manufactured Led Product over 10 Years.Rich experience with
excellent staff, first-class production
environment ,rigorous and efficient enterprise management system.
2. Customized Design Product is welcome.And MOQ can be 1 Unit.We
will provide the competition price
for Various Led Products.
3. The company has a variety of test equipment to control product
quality like “Light Source Analysis
System”, “High – Low Temp & Variation Chamber”, “Transportation
Vibration Testing Machine”, “Splash
Water Test Equipment” .
4. Flexible Payment – Wire Transfer (T/T), Wester Union, Paypal .
5. Products all certificated, all our products have passed all
test, certification can be provided if you need.
Purchase Process
1. Inquiry-Professional quotation by email or telephone. 2. Confirm
the price, lead time, artwork, payment term etc. 3. Send the
Performa Invoice. 4. Customer makes the payment and sends us Bank
receipt. 5. Initial Production Stage-Inform the clients that we
have got the payment, And will make the samples according to your
request, send you photos or Samples to get your approval. After
approval, we inform that we will arrange the production & inform
the estimated time. 6. Middle Production-send photos to show the
production line which you can see your products in . Confirm the
estimated delivery time again. 7. End Production-Mass production
products photos and samples will send to you for approval. You can
also arrange the third party inspection if you need. 8. Finish the
balance payment if the order has .Book the flight or vessel and
ship the goods. Inform the tracking number or send the Documents
for Customer to do Customs Clearance. 9. Order can be say “finish”
when you receive the goods and satisfy with them. 10. Feedback to
us about Quality, Service, Market Feedback & Suggestion. And we can
do better.
About Linger
1. We are a reliable and professional supplier for led board in
China for 11 years. We are specialized in
dealing a wide range of led product such as led scoreboard,led gas
price sign,led message sign ,led
clock,led display and other led display. Since now we have so many
fixed customers from all of the
world.
2. We accept the Customized Product or MOQ is one unit. At least
95% of led scoreboard is customized
type by our design on our website. We are specialized for
scoreboard controller function design
especially Australia sport of scoreboard like Australia Football
board and Cricket board.
3. We supply you the most led products with the competitive price,
high quality, fast delivery and best
service. We are direct seller of led board and display, you can get
the most competitive price from us.
Warmly welcome to contact us, and of course, you can visit our
factory if you want.
