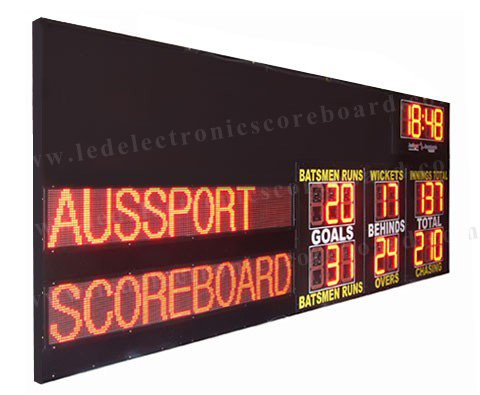

Australia AFL Football and Cricket Led Electronic Scoreboard with
Multi - Funtions
| PRODUCT INFORMATION |
| Model No. : | LG-AFL20D400R-VTN |
| Dight Height and Color : | 16'' 400mm Height in Red Color |
| Display Dimension : | 4.9 ft x 14.8 ft x 4inch ( 1500mm x 4500mm x 100mm ) |
| Team Name Height and Color : | Pitch12mm In Red Color |
| Team Name Size : | 288mm x 1920mm x 2 Names |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 600m |
| Application : | FBC / AFL (Football Sport and Cricket Sport ) |
| Frame Color : | Black / other Colors |
| Weight : | 180kgs |
| Waterproof : | Outdoor Type |
AFL Scoreboard Descripition
Function : Football Mode and Cricket Mode Information
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 16'' 400mm
4) Display Led Color : Red (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage:
20 Pieces digits , 16 inch character in Red Color
60 Pieces led modules , Pitch12mm in Red Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1570mm x 4570mm x 160mm ( Wooden Case ) / 300kgs
Screen Dimension : 4.9 ' x 14.8 ' x 4''
AFL Function Descripition
AFL Scoreboard with 2 Modes : Football (Aussie) Mode and Cricket
Mode
TIME : Minutes / Seconds for Football Mode , Hours : Minutes for
Cricket Mode - 4 Digits to display
Footbal Mode Mode :
GOAL - 2 Digits Display score number 00 - 99 ( GOAL + 1 = TOTAL + 6
)
BEHINDS - 2 Digits Display score number 00 - 99 ( BEHINDS + 1 =
TOTAL + 1)
TOTAL - 3 Digits display score number 000 - 999
Cricket Mode Mode :
BATSMEN RUNS - 3 Digits display number 000 - 999
WICKETS - 2 Digits display number 00 - 99
OVERS - 2 Digits display number 00 - 99
BATEMAN TOTAL - 3 Digits display number 000 - 999
CHASING - 3 Digits display number 000 - 999
TIME : GAME TIME / DAY TIME - 4 digits display Hours : Minutes or
Minutes : Seconds
Team Name : Sticker in White Color (Customized)
Siren : Include . When time is reach to 00 :00 , it will sound for
5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
Product Testing and Aging Steps
1. Test the Leds Chrominance and Angle in darkroom
( Using Equipment : Light Source Analysis System)
2. Test the Temperature and Humidity
(Using Equipment : High – Low Temp. & Variation Chamber)
3. Test the Seismic Performance
(Using Equipment : Transportation Vibration Testing Machine)
4.Test the waterproofing performance and long-term ponding water.
(Using Equipment : Splash Water Test Equipment )
5. Passed all above Testing ,product will be aging at least for
72Hours.
(Aging Method : Light the all leds and to be Flashing )
Installation Method
For Indoor Scoreboard :
1) Bracket / Bracket with wheels
2) Hanging with Hooks and it is dangly
3) Hanging on the Wall and it is fixed on wall
4) Hanging on the pillar with anchor ear
For Outdoor Scoreboard:
1) Portal Frame
2) Hanging on the Wall and it must be fixed
3) Hanging on the pillar with anchor ear
4) Bracket / Bracket with wheels ( Only for small size )
5) Hanging into Wall and Fixed
Attention Matters:
Dissipate Heat and Drainage - Inform us the installation method in
advance ,we will make
right method on scoreboard.
Maintenance - Easy to do maintance from front or back side .
Stable and stronger Method - Weatherproof
