Factory Directly Supply and Top Brightness Led Electronic
Scoreboard With Installation Brackets
| PRODUCT INFORMATION |
| Model No. : | LG-AFL20D300W |
| Dight Height and Color : | 12'' 300mm Height in White Color |
| Display Dimension : | 3.9 ft x 8.2 ft x 4inch ( 1200mm x 2500mm x 100mm ) |
| Operation Type : | PVC Buttons Type Controller Box / Windows Software (Wireless) |
| View Distance : | 1m ~ 300m |
| Application : | FBC / AFL (Football Sport and Cricket Sport ) |
| Frame Color : | Black / other Colors |
| Team Name Letters | Sticker in White Color for Any letters |
| Weight : | 80kgs |
| Waterproof : | Outdoor Type |
AFL Scoreboard Descripition
Function : Football Mode and Cricket Mode Information
Specification :
1) Use of the environment: Indoor or Outdoor
2) Brightness: High Level Brightness
3) Height of Characte: 12'' 300mm
4) Display Led Color : White Color (Any other kind is Option)
5) Frame Color : Black Color (Any other kind is Option)
Overall Structure :
1) Display usage:
20 Pieces digits , 12 inch character in White Color
2) Frame : Iron / Steel
3) Faceplate : Display window cover glass board and UV Protection
4) Drainage Outlet at the bottom of the Frame
5) Fans install inside of scoreboard
Technical Norms :
1) Power Supply : 110V ~ 240V
2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity
Operation Type :
1) PVC Buttons Controller Box / Windows Software
2) Hard - wire / Wireless Type
3) Operation Distance : Max 1000Meters.
4) Controller box works by 110V ~ 240V Power (Battery is an Option)
Life Time of Leds : 100000 Hours
Installation : Hanging / Mounting / Custoized Design
Delivery Time : 7days ~ 12days
Warranty : 2 Years
Package Dimension : 1270mm x 2570mm x 160mm ( Wooden Case ) / 150kgs
Screen Dimension : 3.9 ' x 8.2 ' x 4''

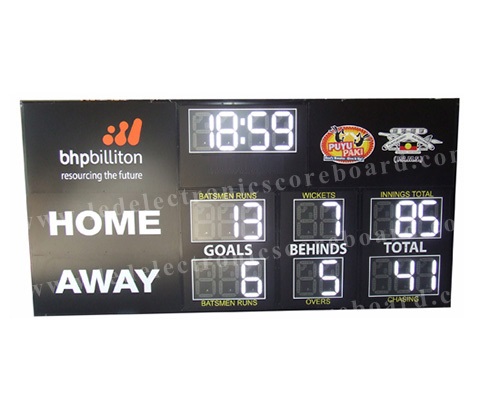

AFL Function Descripition
AFL Scoreboard with 2 Modes : Football (Aussie) Mode and Cricket
Mode
TIME : Minutes / Seconds for Football Mode , Hours : Minutes for
Cricket Mode - 4 Digits to display
Footbal Mode Mode :
GOAL - 2 Digits Display score number 00 - 99 ( GOAL + 1 = TOTAL + 6
)
BEHINDS - 2 Digits Display score number 00 - 99 ( BEHINDS + 1 =
TOTAL + 1)
TOTAL - 3 Digits display score number 000 - 999
Cricket Mode Mode :
BATSMEN RUNS - 3 Digits display number 000 - 999
WICKETS - 2 Digits display number 00 - 99
OVERS - 2 Digits display number 00 - 99
BATEMAN TOTAL - 3 Digits display number 000 - 999
CHASING - 3 Digits display number 000 - 999
TIME : GAME TIME / DAY TIME - 4 digits display Hours : Minutes or
Minutes : Seconds
Team Name : Sticker in White Color (Customized)
Siren : Include . When time is reach to 00 :00 , it will sound for
5 ''
Led Brightness : Option
SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !
Technology Cooperation
Hardware :
1) As Final Output Equipment
2) Provide Function Of Data Collection
3) Building the Synchronous Communication Architecture
4) To be the matching Display Equipment
5) Establish Platform for Man-machine communication
6) Form a complete set of electromechanical integration equipment
Software :
1) Building the Synchronous Communication Signal
2) Provide the Outside data feedback
3) Provide the Usual Data Feedback
4) Network Support
5) Form a complete set of electromechanical integration equipment
signal
Special Product Customization :
1) Special 7 Segments Digit for Size and Shape
2) Special 16 Segments Digit which is displayed Letter (A -Z)
3) Manufacture Different Size and Color for Signal instruction
Light
4) Multi – Function Communication
Installation Method
For Indoor Scoreboard :
1) Bracket / Bracket with wheels
2) Hanging with Hooks and it is dangly
3) Hanging on the Wall and it is fixed on wall
4) Hanging on the pillar with anchor ear
For Outdoor Scoreboard:
1) Portal Frame
2) Hanging on the Wall and it must be fixed
3) Hanging on the pillar with anchor ear
4) Bracket / Bracket with wheels ( Only for small size )
5) Hanging into Wall and Fixed
Attention Matters:
Dissipate Heat and Drainage - Inform us the installation method in
advance ,we will make
right method on scoreboard.
Maintenance - Easy to do maintance from front or back side .
Stable and stronger Method - Weatherproof
